TH Series – Deltawing

type

VHF

power rating: 0

mounting options: Side

• Field-proven design for top reliability
• Excellent horizontal pattern control capabilities
• High input power capability
• Wide impedance bandwidth for multiplex operation
• Rugged corrosion-resistant radiator with simple feed
• Branch feed—ideal for analog or digital transmission
• Available in one to twelve bay arrays
• Full slot radome available for high icing environments

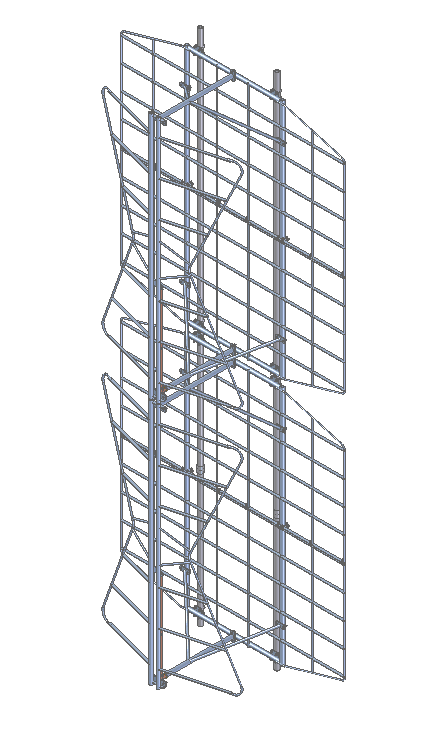

The TH Deltawing uses a pair of batwing shaped radiating elements in a panel configuration designed for minimum weight and windloading. The design optimizes impedance and radiation performance. The Deltawing design allows for wrap-around mounting to existing structures or the installation on custom designed support splines. Typically used in one to six around configurations, the azimuth pattern characteristics are unlimited.

*All specifications are subject to change
