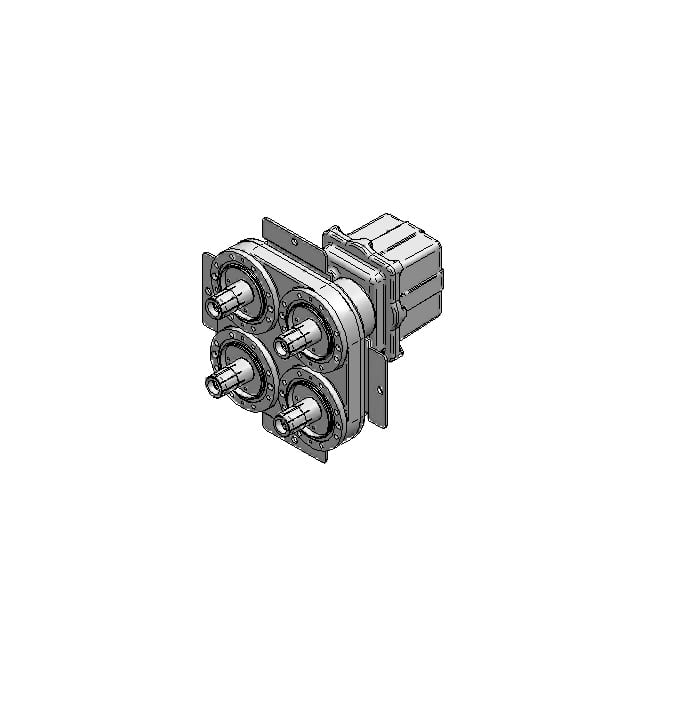

Coaxial 4-Port Motorized Switch 4-1/16″ EIA
- Low insertion loss
- Low VSWR
- Motor drive switching
- Indoor applications
- Emergency manual operation
- Pressurized upon request
- Two-way switches
Notes:
1) Special operating frequency requests beyond specified operarting range accepted. Call factory for details.
2) For more than 5,000 feet (1,524 m), please consult the factory.
3) Coaxial switches must not to be exposed to condensing moisture environments.
4) 104°F (+40°C) ambient temperature, 145°F (63°C) outer temperature, 248°F (120°C) inner temperature,
sea level, 0 PSIG, VSWR=1.0

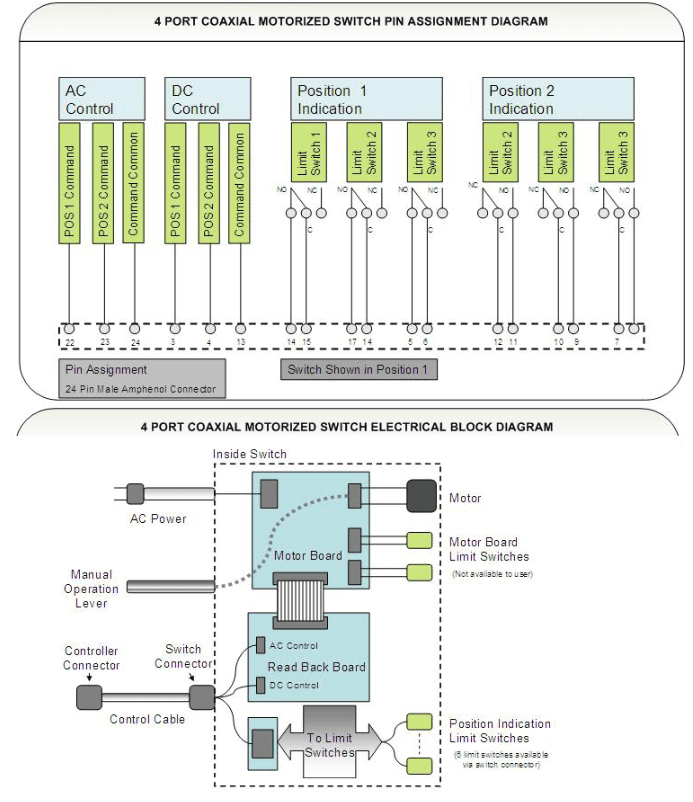

5) Limit Switches are used for readout and position indication
specification tables:
| Model Number DC 60000-400 DC 60000-405 |
| Input/ Output Connectors 4-1/16" Flanged 4-1/16" Flanged |
| Impendance 50 ohms 50 ohms |
| Peak Voltage₄ at Sea Level 9 kV 9 kV |
| Frequency Range₁ DC 800 MHz DC 800 MHz |
| Max. Altitude₂ 10,000 feet (3,050m) 10,000 feet (3,050m) |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Storage/ Ambient Humidity₃ 0-98% non condensing 0-98% non condensing |
| Average Power₄ |
| 108 MHz ≤ 64.7 kW ≤ 64.7 kW |
| 230 MHz ≤ 44.6 kW ≤ 44.6 kW |
| 776 MHz ≤ 24.1 kW ≤ 24.1 kW |
| 860 MHz ≤ 22.9 kW ≤ 22.9 kW |
| Insertion Loss ≤ 0.1 dB ≤ 0.1 dB |
| VSWR ≤ 1.05 ≤ 1.05 |
| Isolation > 60 dB > 60 dB |
| Switching Time 3 sec. 3 sec. |
| Electrical Data |
| Motor Operating Voltage 115 V AC/50/60 Hz 230 V AC/50/60 Hz |
| Motor Operating Current 1.25 Amps-start 0.924 Amps-start |
| 0.6 Amps-run 0.50 Amps-run |
| Control Voltage 12,/ |
| Limit Switching Rating₅ |
| Voltage 125/230 V AC 125/230 V AC |
| Current 12,/24 V DC, 115/230 V AC 12,/24 V DC, 115/230 V AC |
| Weight 78 lbs (35 kg) 78 lbs (35 kg) |

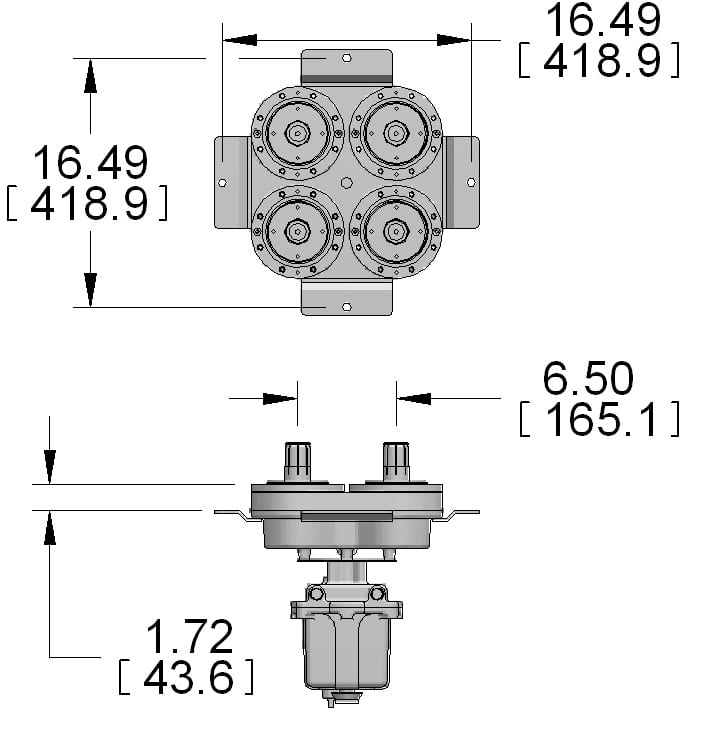

technical images:
*All specifications are subject to change
