Coaxial EIA Reducer
type
Reducers, Rigid line Accessories
Reducer to smaller line constant impedance. Includes inner conductor connector, O-rings and hardware.
specification tables:
| T/L Size |
Smaller Size |
Catalog Number |
Impendance in Ohms |
L |
Approx. Wt. |
| 1 5/8" |
7/8" |
275-060 |
50 |
1.75" |
2 lbs |
| 3 1/8" |
7/8" |
375-061 |
50 |
1.25" |
5 lbs |
| 3 1/8" |
1 5/8" |
375-060 |
50 |
0.875" |
6 lbs |
| 4 1/16" |
3 1/8" |
475-060 |
50 |
4.00" |
10 lbs |
| 6 1/8" |
3 1/8" |
675-061 |
50 |
6.75" |
14 lbs |
| 6 1/8" |
4 1/16" |
675-060 |
50 |
5.00" |
16 lbs |
| 8 3/16" |
7 3/16" |
877-061 |
75 |
9.00" |
22 lbs |
| 8 3/16" |
6 1/8" |
877-060 |
75 |
9.31" |
21 lbs |
| 9 3/16" |
6 1/8" |
975-061 |
50 |
9.00" |
25 lbs |
| 9 3/16" |
6 1/8" |
977-061 |
75 |
10.00" |
25 lbs |
| 9 3/16" |
8 3/16" |
977-060 |
75 |
9.00" |
32 lbs |

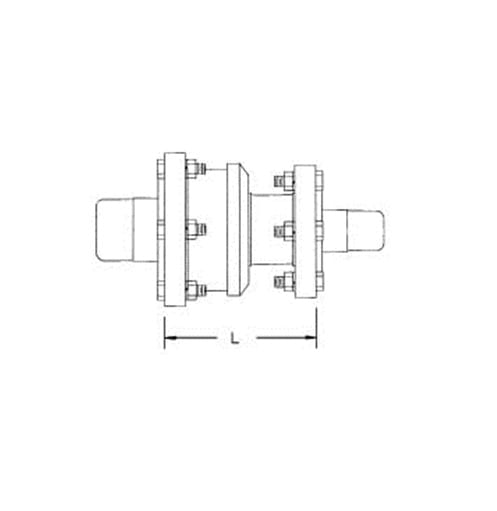

technical images:
*All specifications are subject to change
