digiTLine 8 3/16″
type
8-3/16in., Rigid line

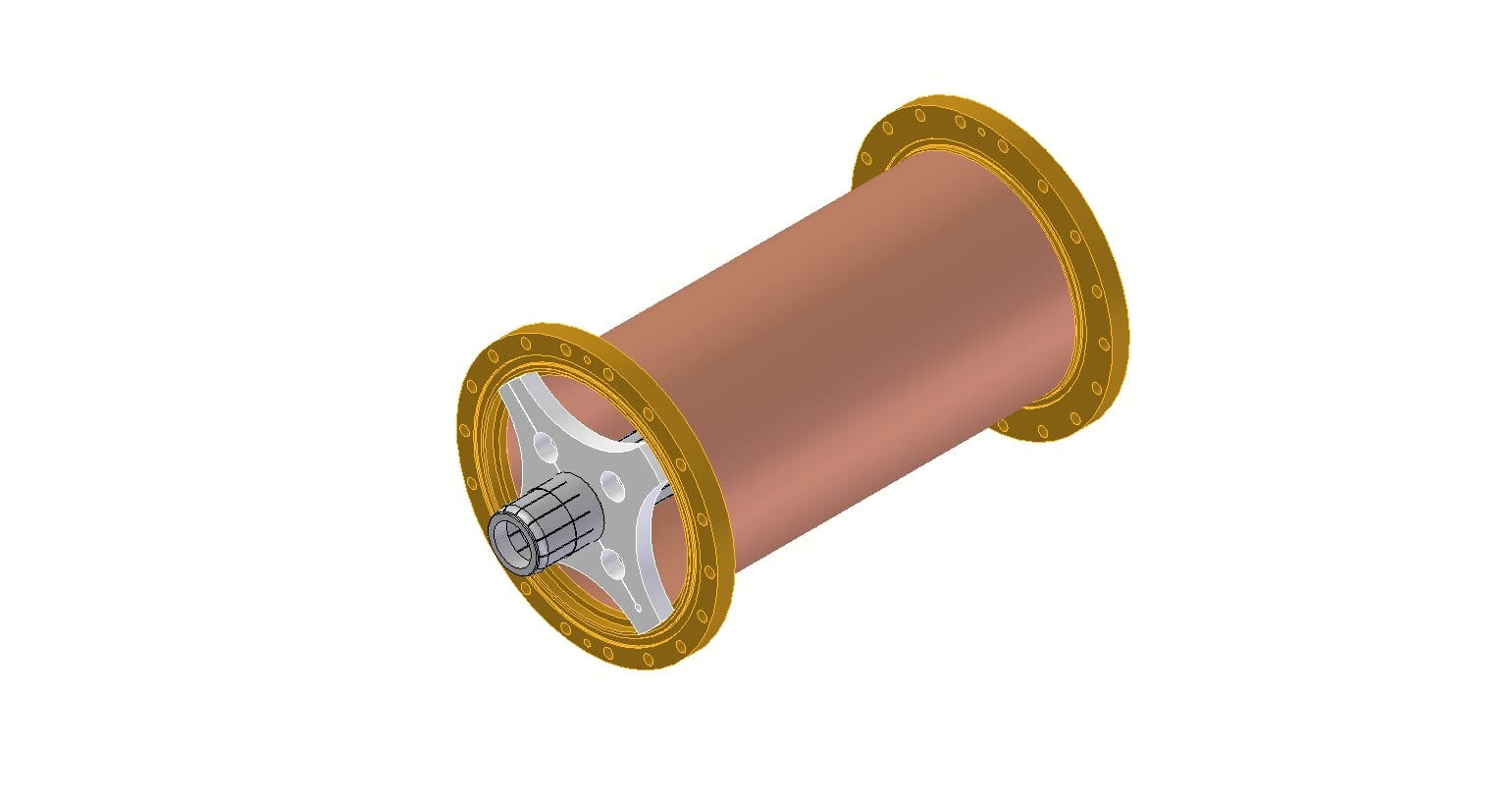

Transmission line with flanges on both ends. Includes expansion connector, Oring, and hardware kit.
90° reinforced elbow, equal leg. Includes one anchor connector, one O-ring and one hardware kit. Swivel flanges.
90° reinforced elbow, unequal leg. Includes one anchor connector, one O-ring and one hardware kit. Swivel flanges.
specification tables:
| Type |
T/L Size |
Catalog Number |
Impendance in Ohms |
L1 |
L2 |
Approx. Wt. |
| Transmission Line |
8 3/16" |
DL 87-004 |
75 |
N/A |
N/A |
216 lbs |
| 90⁰ Elbow (Equal) Reinforced |
8 3/16" |
DL 87-021 |
75 |
12" |
N/A |
55 lbs |
| 90⁰ Elbow (Unequal) Reinforced |
8 3/16" |
DL 87-022 |
75 |
12" |
24" |
55 lbs |
*All specifications are subject to change
