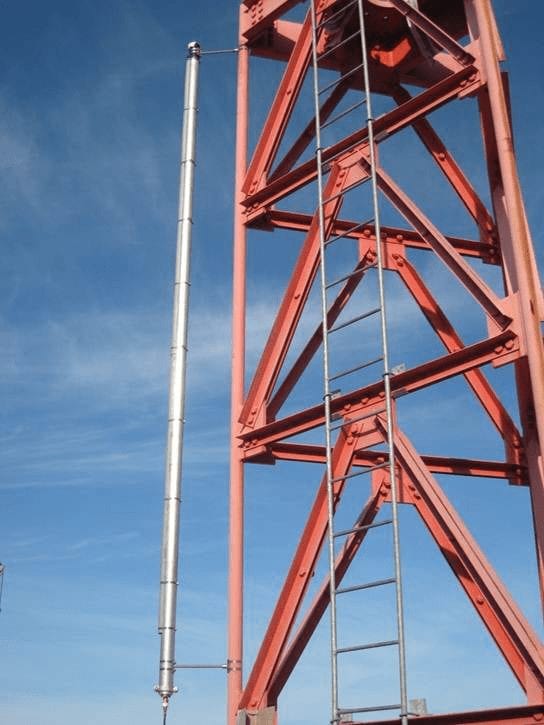

DLP Low Power Antenna

type

Multi-Channel, Powerlite UHF, Television

power rating: 470

mounting options: Side

Dielectric’s DLP Series antenna is designed specifically as an economical single channel choice for low power TV, DTV, and gap filling.



  • Operating Range: one channel within 470-860 MHz
  • Single 8-bay section
  • Economical design
  • Suitable for analog or DTV applications
  • 1.6kW average power rating
  • ERPs up to 35 kW
  • 5 different standard azimuth patterns available
  • Elevation pattern with gain of 8 (9.03dBd)
  • 1.5 degrees nominal beam tilt
  • Horizontally polarized
  • Elliptically polarized with 30% vertical optional
  • Low VSWR,
  • Slot covers provide environmental protection
  • Standard mounting brackets included for 1-1/4” to 4-1/2” OD pipes
  • Low weight and windload
  • 7/8” EIA input standard
  • Survives winds up to 125 mph (56 m/s)
*All specifications are subject to change
