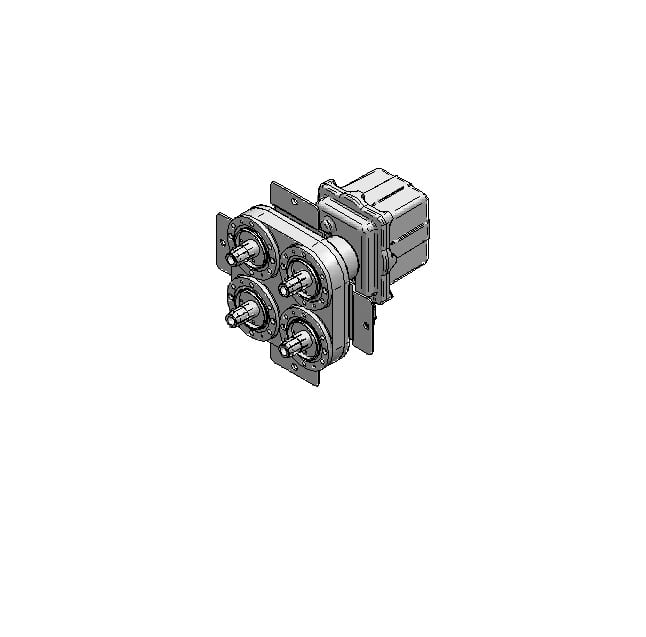

Coaxial 4-Port Motorized Switch 3-1/8″ EIA


Coaxial, Switches
  • Low insertion loss
  • Low VSWR
  • Motor drive switching
  • Indoor applications
  • Emergency manual operation
  • Pressurized upon request
  • Two-way switches

1) Special operating frequency requests beyond specified operarting range accepted. Call factory for details.
2) For more than 5,000 feet (1,524 m), please consult the factory.
3) Coaxial switches must not to be exposed to condensing moisture environments.
4) 104°F (+40°C) ambient temperature, 145°F (63°C) outer temperature, 248°F (120°C) inner temperature,
sea level, 0 PSIG, VSWR=1.0

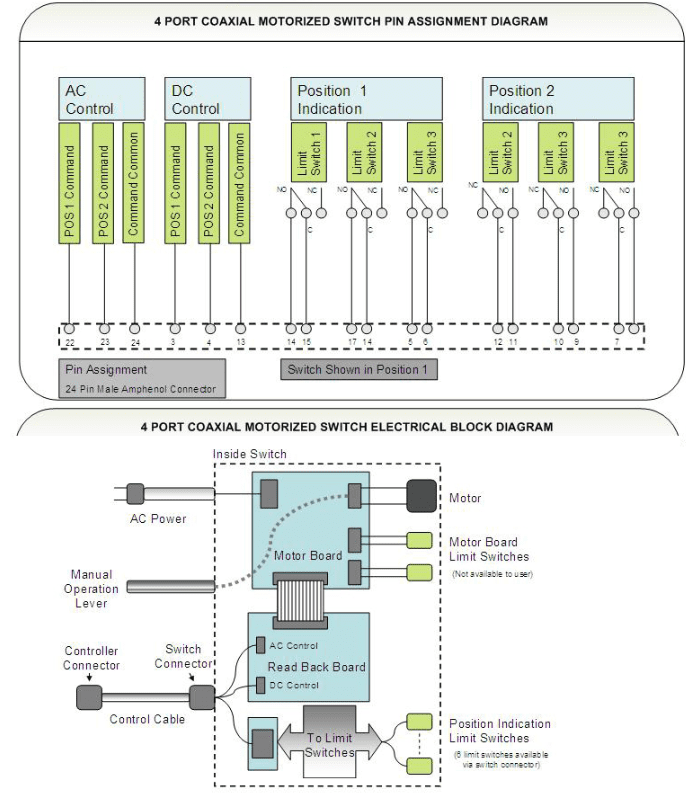

5) Limit Switches are used for readout and position indication.

*All specifications are subject to change
