UHF HIGH POWER 60 KW TUNABLE FILTER

type

Filters, TV Bandpass

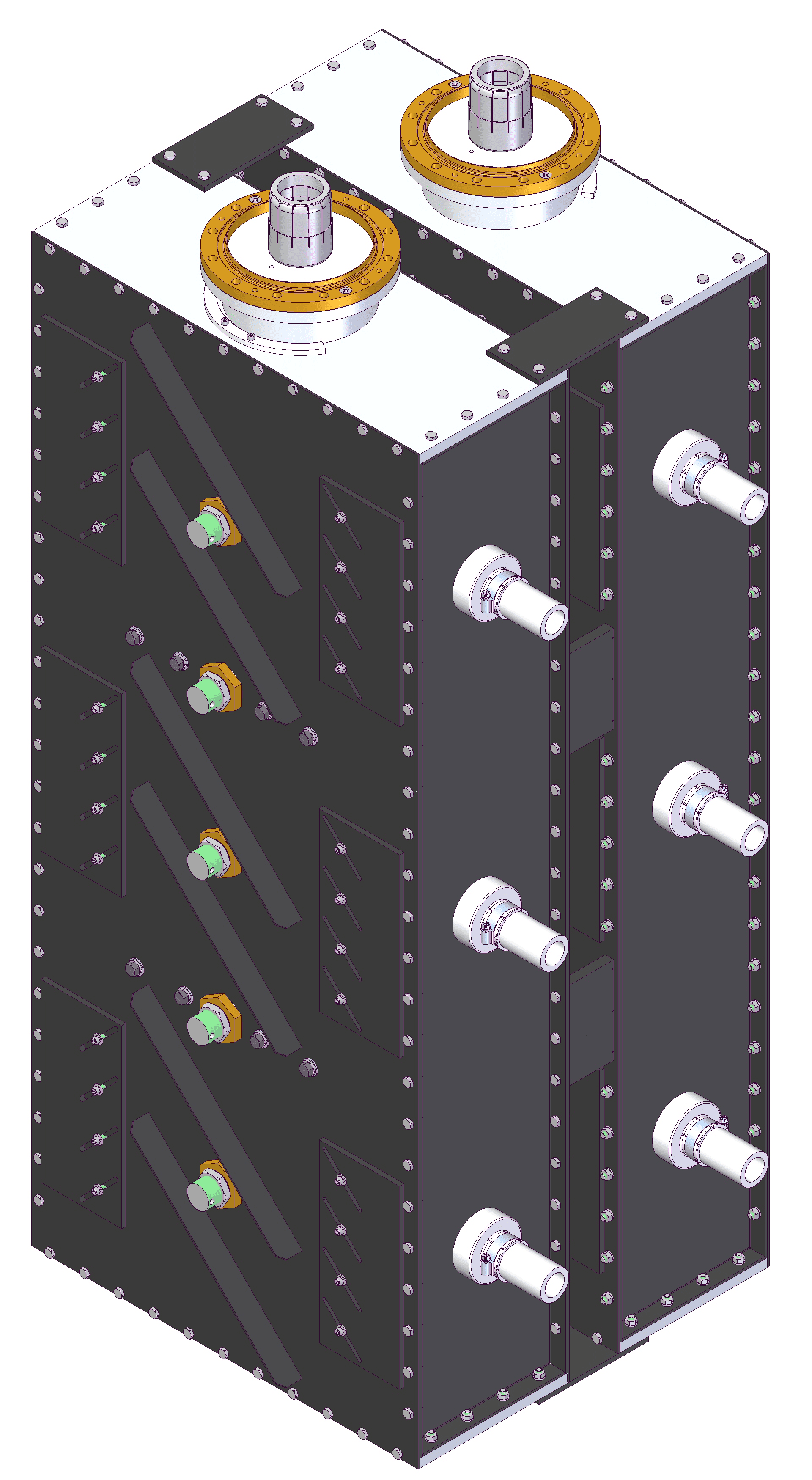

Dielctric’s UT6E16W- XX (30 or 60) k UHF waveguide filter uses patent pending techniques to provide broadcasters with the lowest loss tunable filter. Cavities are temperature-compensated with materials that quickly remove heat, allowing higher average power-handling capability. The 30 kW convection-cooled 6-pole filter is tunable from channels 14 to 40. A simple folded design allows easy installation in the space-limited sites.

  • Efficient waveguide-tunable UHF filter
  • Reduced operational cost
  • Enhanced peak power capability
  • ATSC 3.0 compatible
  • 30 kW convection-cooled
  • 60 kW air-cooled
  • Cross coupled for increased rejection
  • Temperature-compensated
  • DC short at input/output
  • Compact folded design
*All specifications are subject to change
