Single Horizontal Three-Point Suspesion Hanger
type
Hangers, Rigid line Accessories
For horizontal suspension of single line.
specification tables:
T/L Size |
Catalog Number |
L1* |
L2 |
Approx. Wt. |
3 1/8" |
370-032 |
15 1/8" |
15" |
5 lbs |
4 1/16" |
470-032 |
18 1/2" |
17 1/4" |
7 lbs |
6 1/8" |
670-032 |
23 3/4" |
16 3/4" |
12 lbs |
7 3/16" |
770-032 |
24 1/4" |
17 3/8" |
20 lbs |
8 3/16" |
870-032 |
24 3/4" |
17 7/8" |
30 lbs |
9 3/16" |
970-032 |
25 1/4" |
18 3/8" |
18 lbs |
*Indicates free length (No Load) |
|
|
|
|

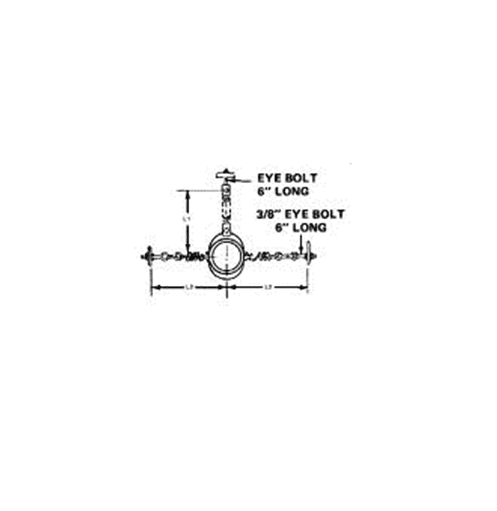

technical images:

*All specifications are subject to change
