  • DCR-H: Right Hand Circularly Polarized
  • HDR-H: Left Hand Circularly Polarized
  • DCR-H/HDR-H IBOC compatible
  • Interleaved provides >-40dB of isolation
  • Stainless steel elements
  • Ideal for Class A and B stations
  • 4 kW for a single bay
  • Fine matcher included
  • Radomes or integral deicers optional
  • VSWR field adjustable
  • No circulators required

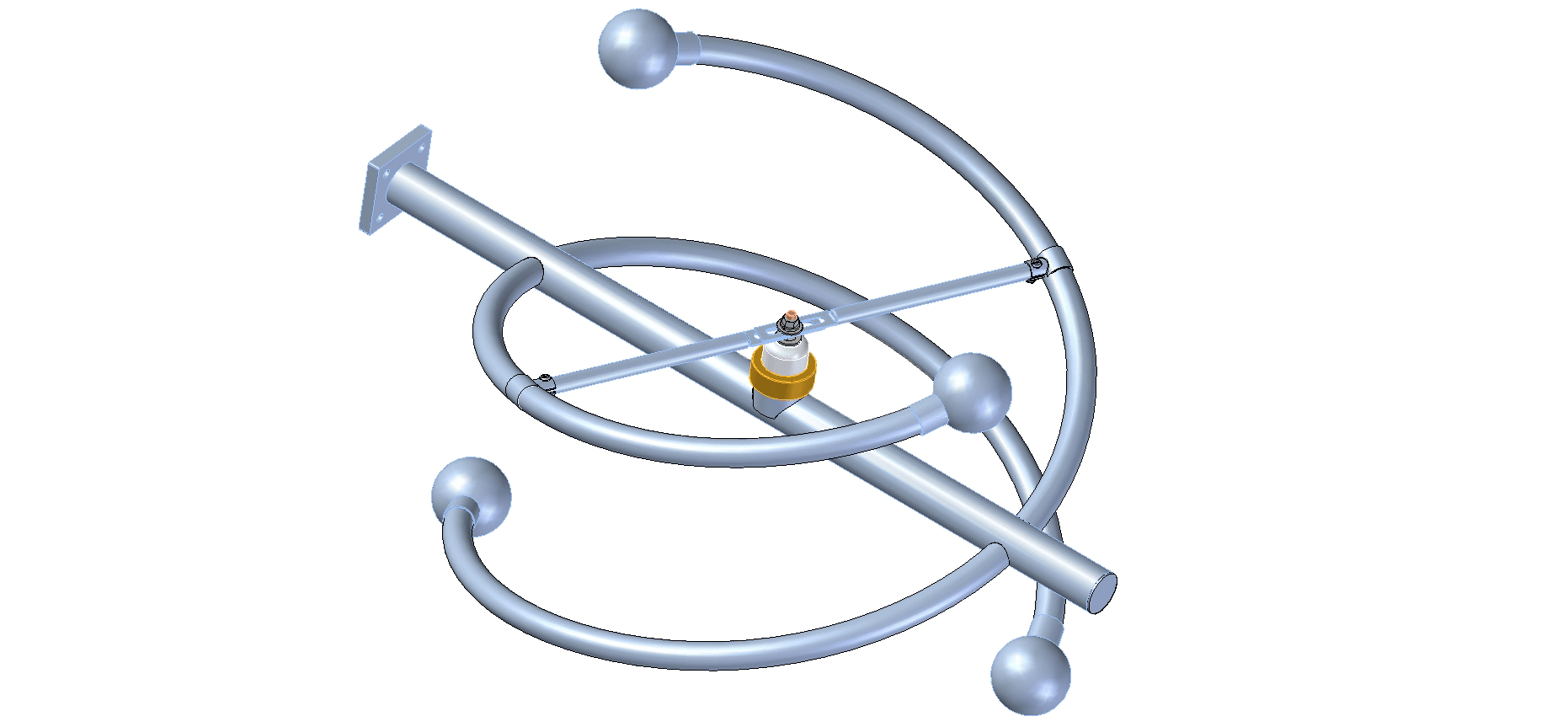

The DCR-H/HDR-H antenna is a low-power version of the DCR-C/
HDR-C and is available in one through twelve bays with an input power
rating up to 12 kW. Each array is supplied with an input fine matcher for
field optimization. For situations where ice formation is common, the arrays
can be equipped with optional electrical deicers or radomes. The antenna is
DC grounded for lightning protection and does not require shorting stubs.
Each array is supplied with an input fine matcher for field optimization.

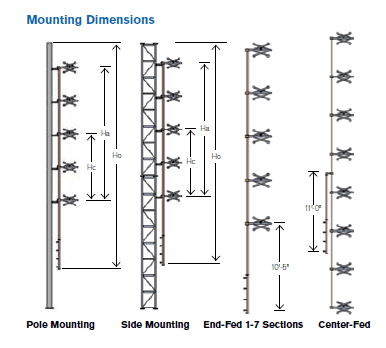

End-Fed or Center-Fed Arrays
Two power distribution methods are used with the DCR-H/HDR-H
antenna. The array is usually end-fed unless it includes beam tilt and/or
null fill. In this case, the sections are fed from a center point. The input
connection in either case is 1-5/8” EIA.
Beam Tilt and Null Fill
Beam tilt and/or null fill are optional extras on the DCR-H/HDR-H series.
If optional beam tilt or null fill is specified, the antenna is designed as a
center-fed array.
Directional Arrays
The DCR-H/HDR-H antenna is available in directional arrays which are
custom-built to the needs of the station.
Low downward radiation options available — contact factory.

*All specifications are subject to change
