DCR-T-R FM Radome Antenna

Equipped with a rugged radome for protection against ice and harsh weather, the economical DCR-T-R antenna brings the benefits of Dielectric`s popular FM ring-style series to low-power applications. Along with all radiating elements, the kit comes complete with jumpers and power dividers for fast installation.

Ideal for Class A and B stations
Circularly polarized
Branch feed
Field-adjustable to any FM channal from 88-108 MHz
IBOC compatible
Low VSWR
1- to 8-bay configurations, full- or half-wave spaced
Power rating up to 1 kW with 7-16 DIN input per bay

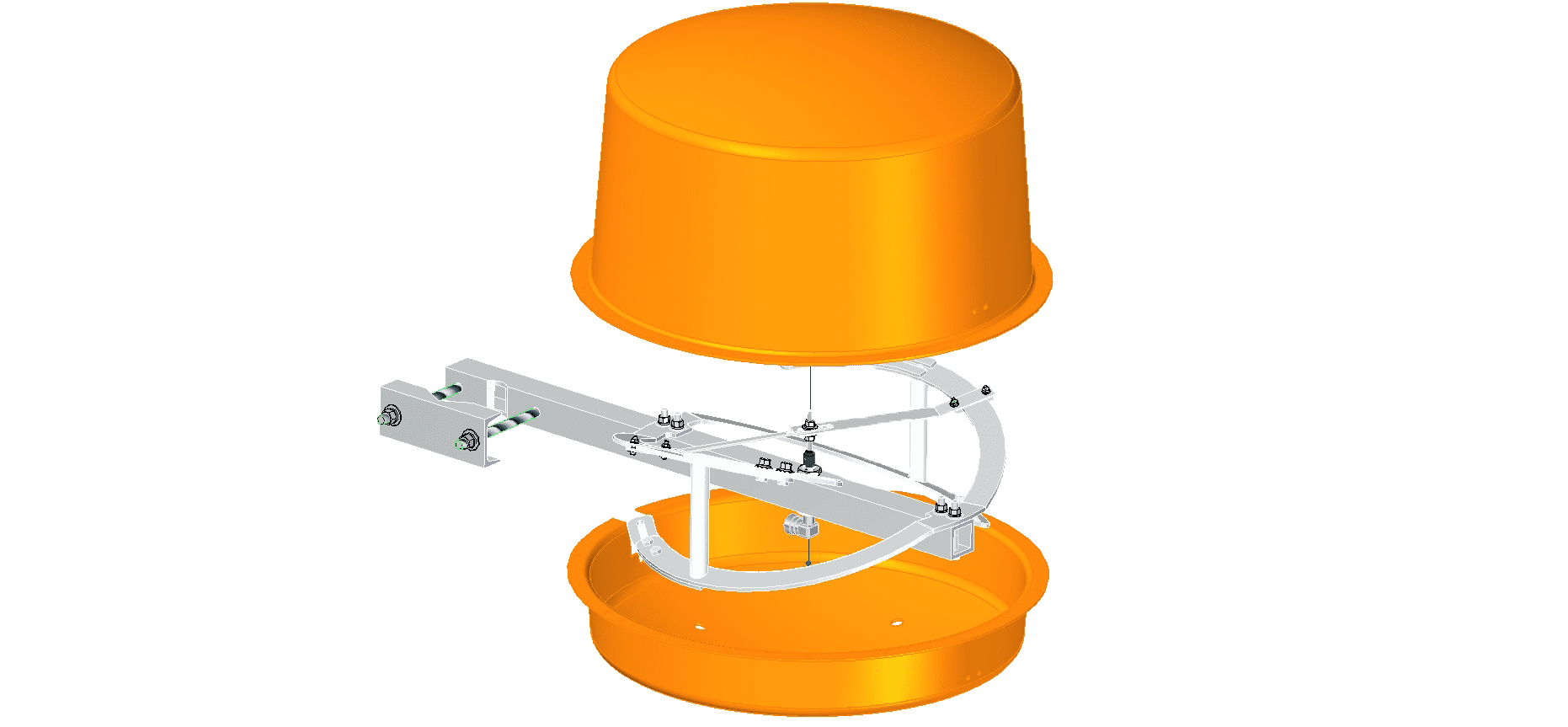

High-impact ABS radome encloses each bay
Null fill and beam tilt optional
1-5/8″ EIA standard array input
Lightweight, all-alluminum construction
Integrated clamp-mount installs easily in a variety of towers

electrical specs table:

Band	Polarization	Circularity	VSWR	Input
FM 88-108 MHz	Circular	± 1 dB free space	w/o field trim: 1.2:1 top mounted 1.5:1 side mounted with field trim: 1.07:1 (± 100 KHz)	Bay 7-16 DIN Array 1 5/8" EIA

mechanical specs table:

Height in (m)	Diameter in (m)	Weight lb (kg)	Wind Area ft²
13.3 (0.34)	27.5 (0.7)	44 (20)	3.2 (0.3)
