TFU-DSB
type
High Power UHF, Multi-Channel, Television
power rating: 20
mounting options: Side
- Available in single and dual channel configurations
- VSWR: < 1.1:1.0 across 6 MHz channel
- Beam Tilt: 1.0 degree standard, custom available
- Input: 3 1/8″ EIA standard input
Dielectric`s DSB series antenna is an economical, mid to high power antenna with numerous standard elevation and azimuth pattern combinations.
electrical specs table:
| Average Power Rating (kW) |
|
|
|
|
| Antenna Type |
Ch. 14-69 |
|
|
|
| TFU-8DSB |
8 |
|
|
|
| TFU-12DSB |
12 |
|
|
|
| TFU-16DSB |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Custom Antenna Type |
Ch. 14-51 |
Ch. 52-69 |
|
|
| TFU-24DSB |
18 |
17 |
|
|
|
|
|
|
|
|
|
|
|
|
mechanical specs table:

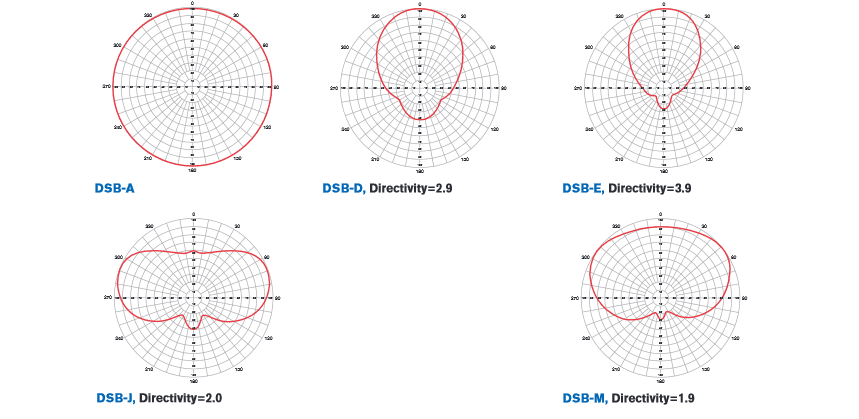

Contact factory.azimuth images:

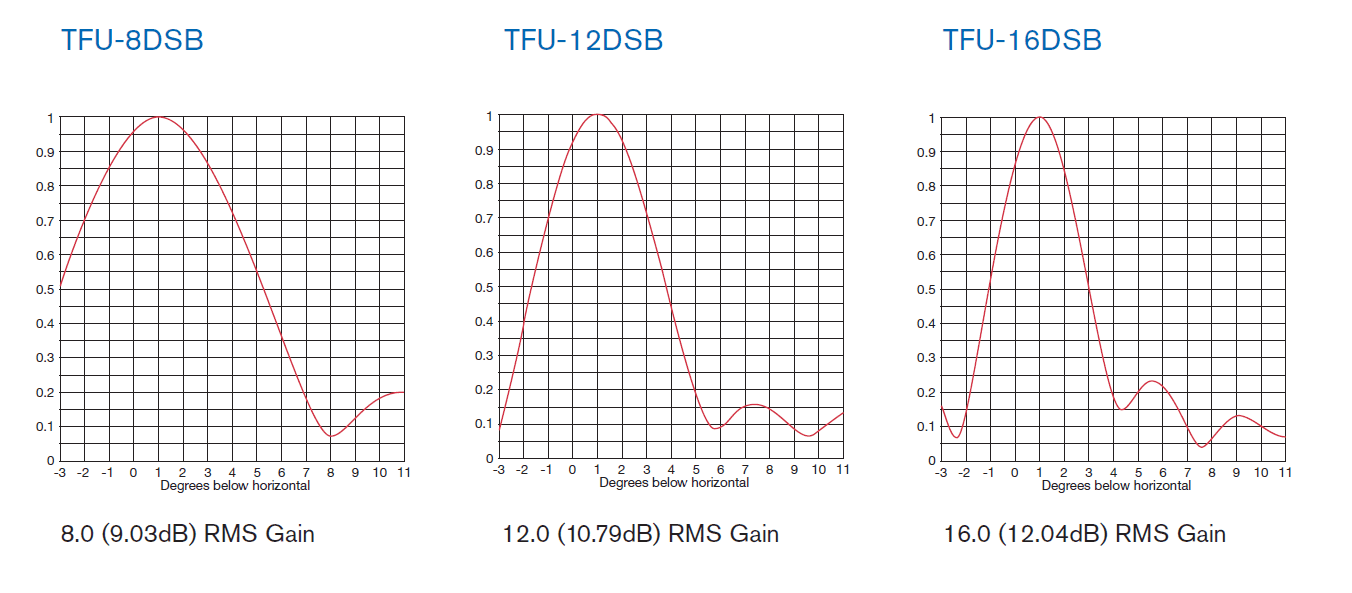

elevation images:
*All specifications are subject to change
