TUL UHF CP Antenna
type
Multi-Channel, Powerlite UHF, Television
power rating: 470
mounting options: Both
TUL panel
- Operating Range: 60MHz band within 470-860MHz
- Circularly polarized panel
- Economical broadband design
- Suitable for multiplexing many channels
- One 7-16 DIN input per panel
- 500W average power rating
- Low VSWR,
- Aluminum construction
- ABS radome for environmental protection
- Panel weight 20lbs (9.1kg)
- Panel dimesnions 38.4 x 18.36 x 8.1in
TUL panel in an antenna array
- A key building block for antennas with different azimuth and elevation patterns
- 4 standard azimuth patterns available
- Custom azimuth and elevation patterns available upon request
electrical specs table:
| Antenna Type |
Azimuth Pattern |
Peak Gain per Polarization (ratio) |
Peak Gain per Polarization (dBd) |
Weight (panels and feed system) lbs (kg) |
Avg. Power (kW) |
Antenna Height ft (m) |
CaAc per TIA/EIA-22-F (Ca=1.4) ft^2 (m^2) |
| TUL-C1-1/1 |
TUL-C1 |
5.2 |
7.2 |
20. (9.1) |
0.5 |
3.2 (1.0) |
6.8 (0.63) |
| TUL-C1-2/2 |
TUL-C1 |
11.5 |
10.6 |
51.8 (23.5) |
1 |
6.8 (2.1) |
15.4 (1.43) |
| TUL-C1-3/3 |
TUL-C1 |
17.7 |
12.5 |
74.1 (33.7) |
1.5 |
10.4 (3.2) |
23.1 (2.15) |
| TUL-C1-4/4 |
TUL-C1 |
23.4 |
13.7 |
97.2 (44.2) |
2 |
13.9 (4.3) |
31.2 (2.9) |
| TUL-C2-1/2 |
TUL-C2 |
2.6 |
4.2 |
51.8 (23.5) |
1 |
3.2 (1.0) |
13.3 (1.23) |
| TUL-C2-2/4 |
TUL-C2 |
5.7 |
7.6 |
95.4 (43.4) |
2 |
6.8 (2.1) |
26.3 (2.45) |
| TUL-C2-3/6 |
TUL-C2 |
8.9 |
9.5 |
140.8 (64) |
3 |
10.4 (3.2) |
40.1 (3.73) |
| TUL-C2-4/8 |
TUL-C2 |
11.7 |
10.7 |
188 (85.5) |
4 |
13.9 (4.3) |
54.6 (5.08) |
| TUL-C3-1/3 |
TUL-C3 |
1.8 |
2.6 |
72.7 (33) |
1.5 |
3.2 (1.0) |
17.4 (1.61) |
| TUL-C3-2/6 |
TUL-C3 |
4 |
6 |
138.1 (62.8) |
3 |
6.8 (2.1) |
34.9 (3.24) |
| TUL-C3-3/9 |
TUL-C3 |
6.1 |
7.9 |
206.2 (93.7) |
4.5 |
10.4 (3.2) |
53.5 (4.98) |
| TUL-C3-4/12 |
TUL-C3 |
8.1 |
9.1 |
297.0 (135) |
6 |
13.9 (4.3) |
75.3 (7.0) |
| TUL-O4-1/4 |
TUL-O4 |
1.3 |
1.1 |
93.6 (42.5) |
2 |
3.2 (1.0) |
21.5 (1.99) |
| TUL-O4-2/8 |
TUL-O4 |
2.9 |
4.6 |
180.8 (82.2) |
4 |
6.8 (2.1) |
43.4 (4.04) |
| TUL-O4-3/12 |
TUL-O4 |
4.4 |
6.4 |
291.6 (132.5) |
6 |
10.4 (3.2) |
68.9 (6.41) |
| TUL-O4-4/16 |
TUL-O4 |
5.9 |
7.7 |
386. (175.5) |
8 |
13.9 (4.3) |
93.9 (8.73) |
mechanical specs table:

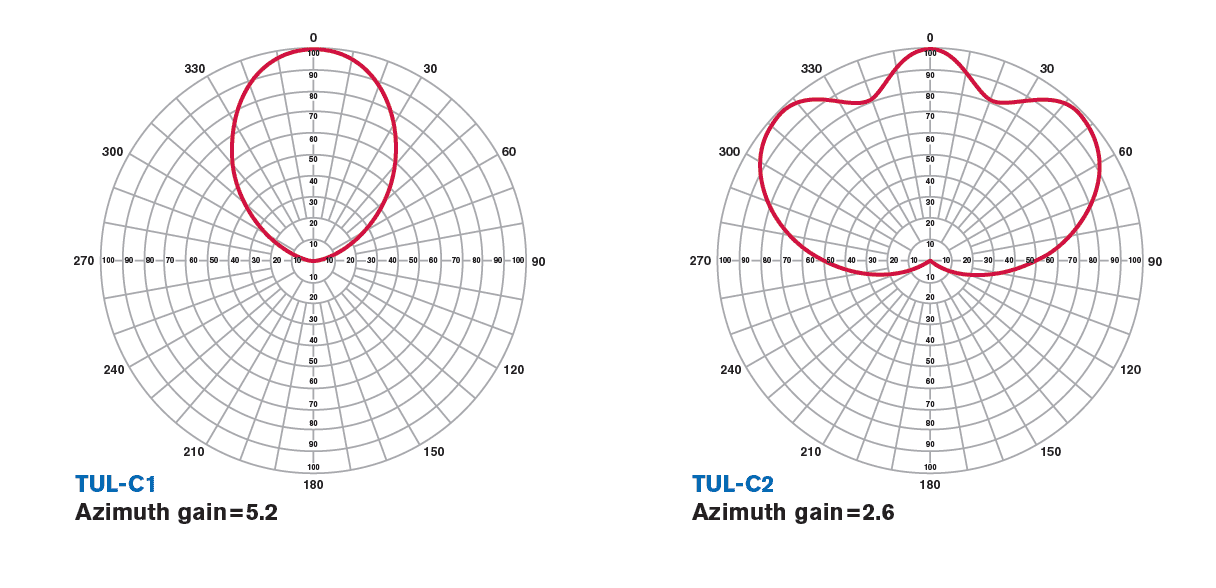

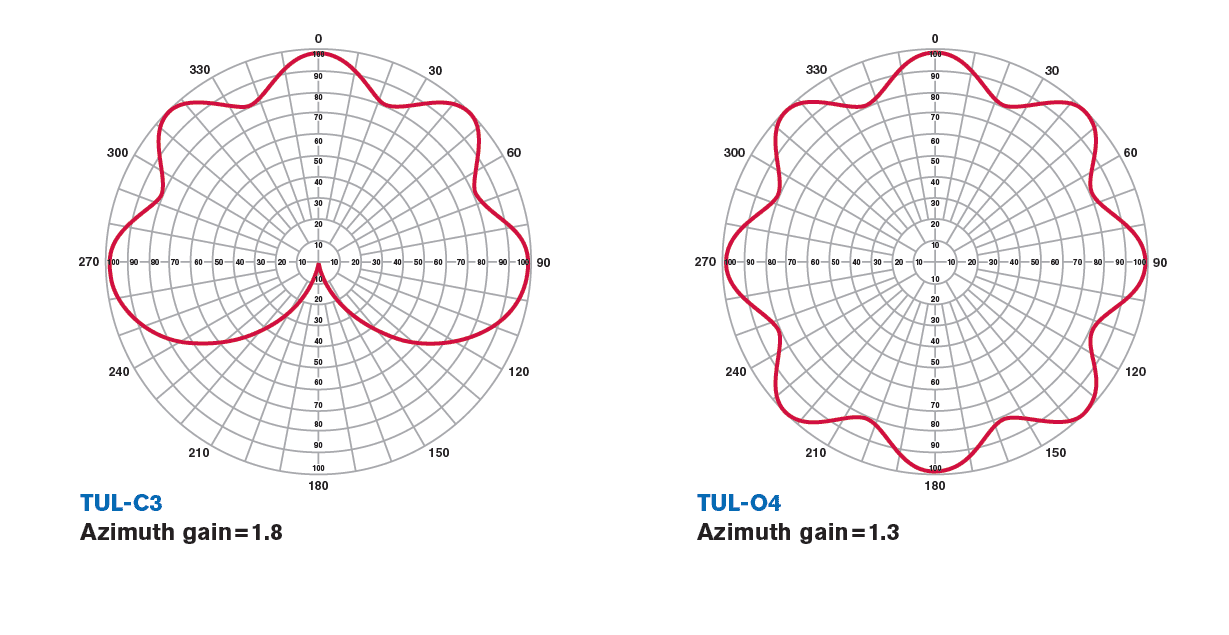

azimuth images:
*All specifications are subject to change
