≤ 10 kW H-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic
≤ 10 kW H-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic0
specification tables:
| Model Number HF9T10I-10K |
| Frequency 174-230 MHz |
| Average Power Handling₁ ≤ 10 kW |
| Type Reflective |
| Response Curve Critical (Full Mask) |
| Temperature Compensated Yes |
| VSWR < 1.1 |
| Max. Altitude₂ 10,000 feet (3,050m) |
| Attenuation 6 MHz ATSC |
| F0 < 0.25 dB |
| F0 ±2.69 MHz < 0.65 dB |
| F0 ±3.00 MHz < 3.65 dB |
| F0 ± 3.25 MHz > 18 dB |
| F0 ±3.50 MHz N/A |
| F0 ±4.50 MHz N/A |
| F0 ±6.00 MHz N/A |
| F0 ±9.00 MHz > 34 dB |
| Number of Poles 9 |
| Group Delay Variation < 450 nS over passband |
| Hybrids N/A |
| Connectors 1-5/8" EIA/ 3-1/8" EIA |
| Temperature Stability < 50 kHz shift over temperature range |
| Blowers & Shrouds No |
| Ambient Temperature 68⁰F (20⁰C) to 95⁰F (35⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing |
| Material Al with Invar rods |

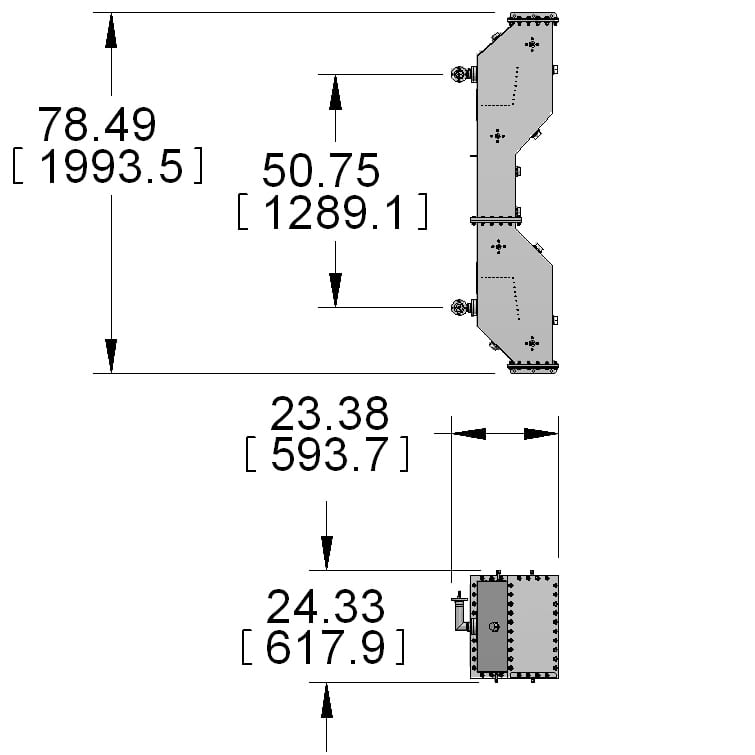

| Dimensions (L x W x H) 79" x 24" x 24.3" (2.0m x 0.6m 0.6m) |
| Weight 400 lbs (182 kg) |
| Applications ATV/DTV |

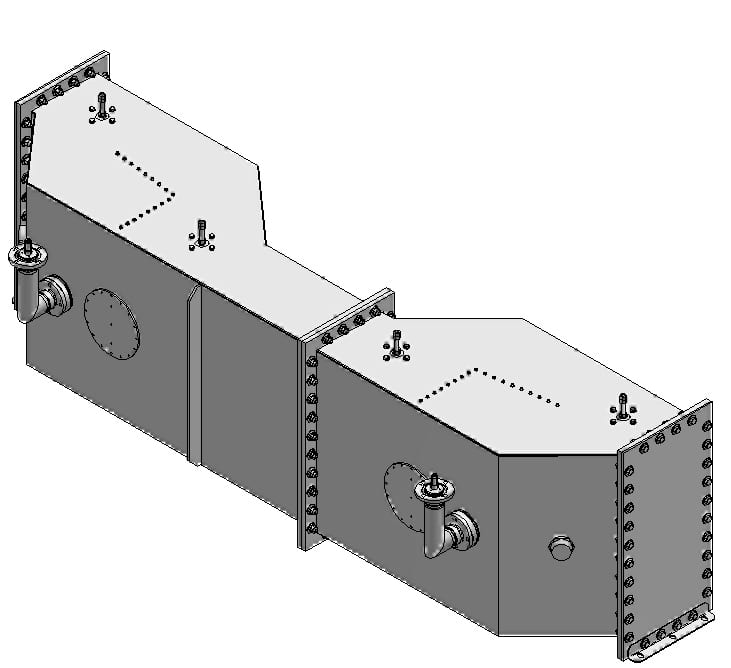

technical images:
*All specifications are subject to change
