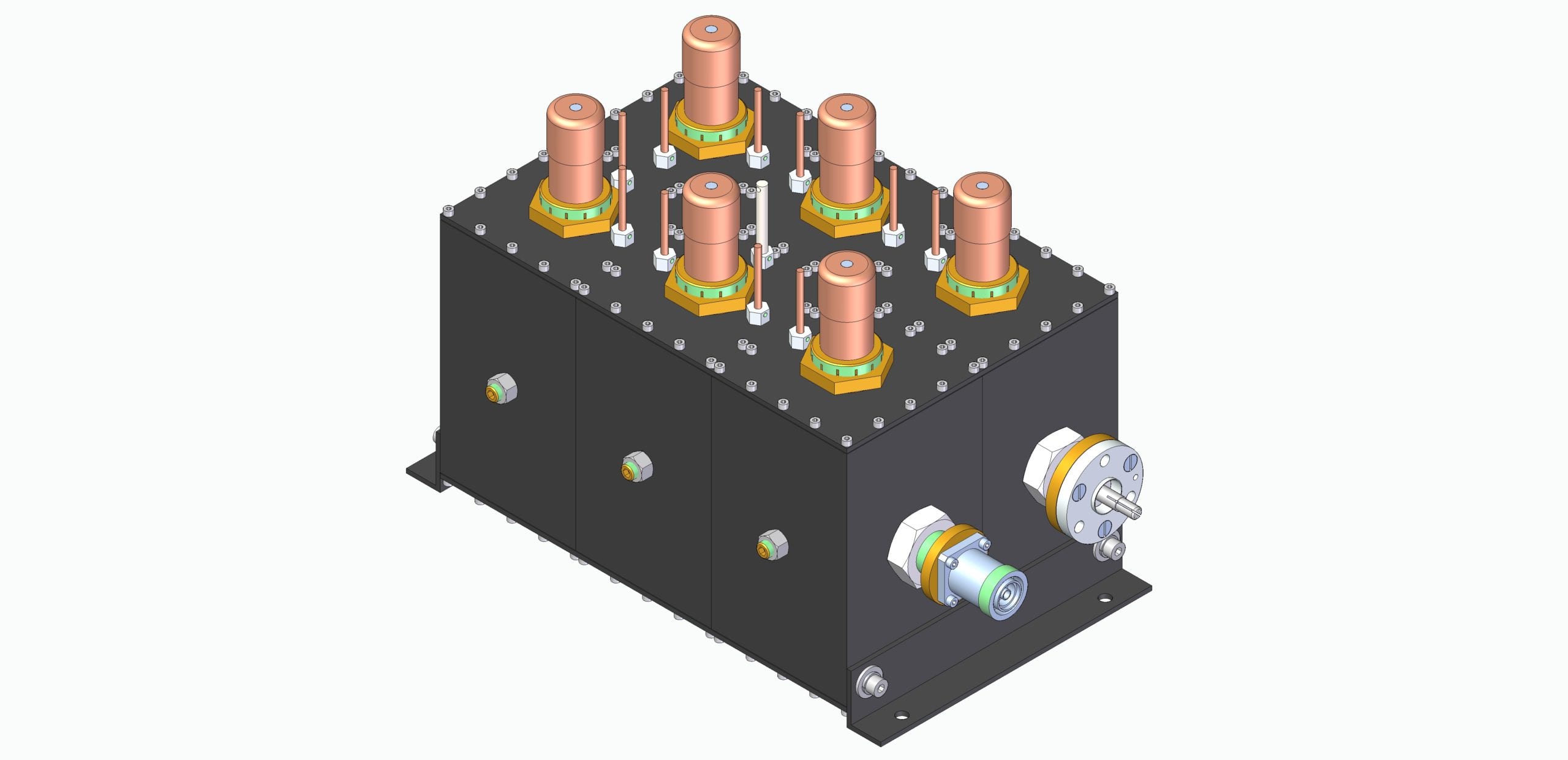

Powerlite 600 Watt Tunable Bandpass Filters

KEY FEATURES

•Tunable 470–806 MHz
• ATSC 3.0-compliant
• Temperature-stable
• 6-pole single or dual cross-coupled and 8-pole dual crosscoupled versions
• Configurable input and output connectors, any combination of:
› DIN 7/16
› 7/8” EIA
› 1 5/8” EIA
• Optional voltage probe monitoring of input and output available

*All specifications are subject to change
