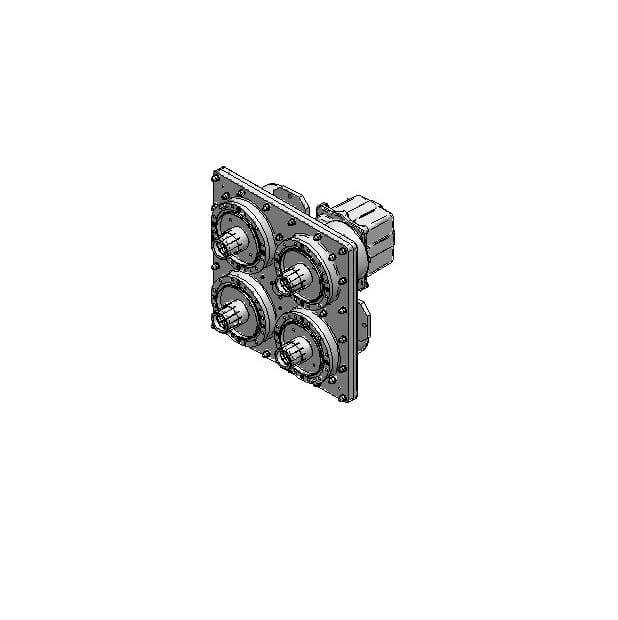

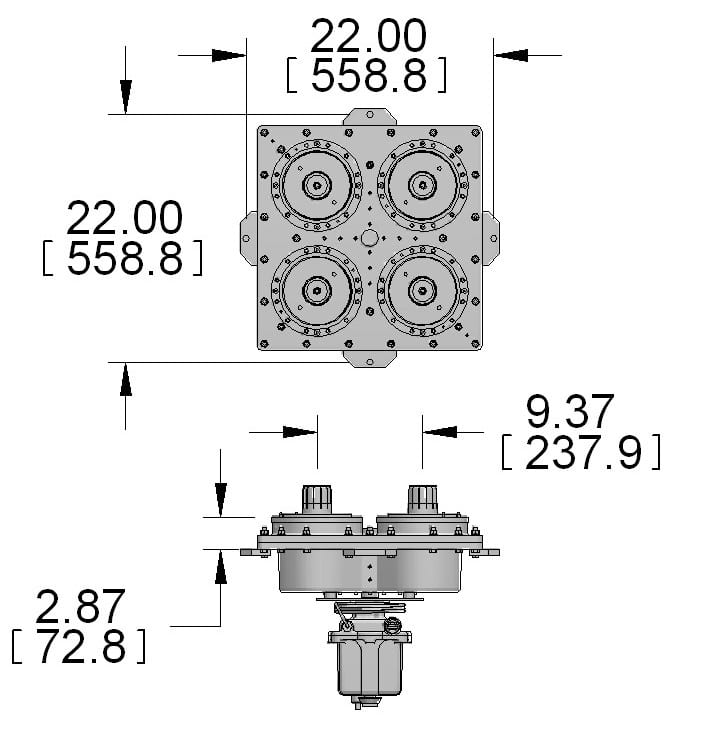

Coaxial 4-Port Motorized Switch 6-1/8″ EIA
Type: Coaxial, Switches
- Low insertion loss
- Low VSWR
- Motor drive switching
- Indoor applications
- Emergency manual operation
- Pressurized upon request
- Two-way switches
Notes:
1) Special operating frequency requests beyond specified operarting range accepted. Call factory for details.
2) For more than 5,000 feet (1,524 m), please consult the factory.
3) Coaxial switches must not to be exposed to condensing moisture environments.
4) 104°F (+40°C) ambient temperature, 145°F (63°C) outer temperature, 248°F (120°C) inner temperature,
sea level, 0 PSIG, VSWR=1.0

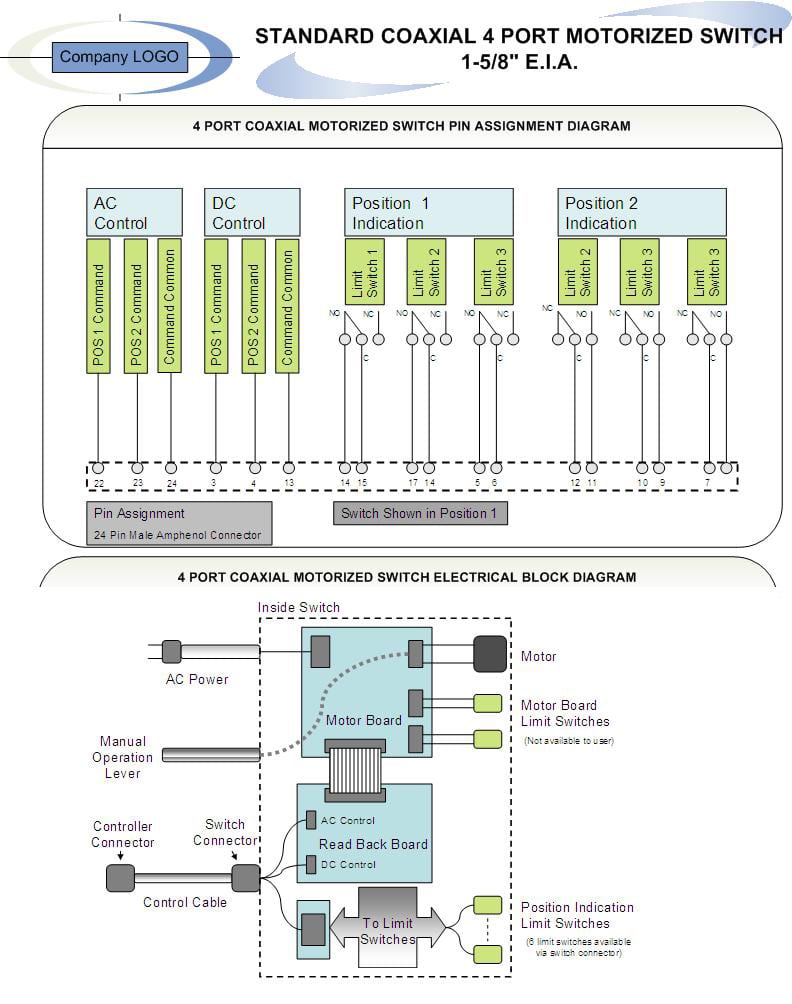

5) Limit Switches are used for readout and position indication.
specification tables:
| Model Number DC 60000-600 DC 60000-605 |
| Impendance 50 ohms 50 ohms |
| Peak Voltage₄ at Sea Level 12 kV 12 kV |
| Frequency Range₁ DC 800 MHz DC 800 MHz |
| Max. Altitude₂ 10,000 feet (3,050m) 10,000 fe0 |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Storage/ Ambient Humidity₃ 0-98% non condensing 0-98% non condensing |
| Average Power₄ |
| 108 MHz ≤ 136.3 kW ≤ 136.3 kW |
| 230 MHz ≤ 94.1 kW ≤ 94.1 kW |
| 776 MHz ≤ 50.7 kW ≤ 50.7 kW |
| Insertion Loss ≤ 0.1 dB ≤ 0.1 dB |
| VSWR ≤ 1.05 ≤ 1.05 |
| Isolation > 60 dB > 60 dB |
| Switching Time 4 sec. 4 sec. |
| Electrical Data |
| Motor Operating Voltage 115 V AC/50/60 Hz 230 V AC/50/60 Hz |
| Motor Operating Current 1.25 Amps-start 0.924 Amps-start |
| 0.6 Amps-run 0.5 Amps-run |
| Control Voltage 12,/24 V DC, 115/230 V AC 12,/24 V DC, 115/230 V AC |
| Limit Switches Rating₅ |
| Voltage 125/230 V AC 125/230 V AC |
| Current 1/3 HP, 10 Amps 1/3 HP, 10 Amps |
| Weight 170 lbs (77 kg) 170 lbs (77 kg) |
*All specifications are subject to change
