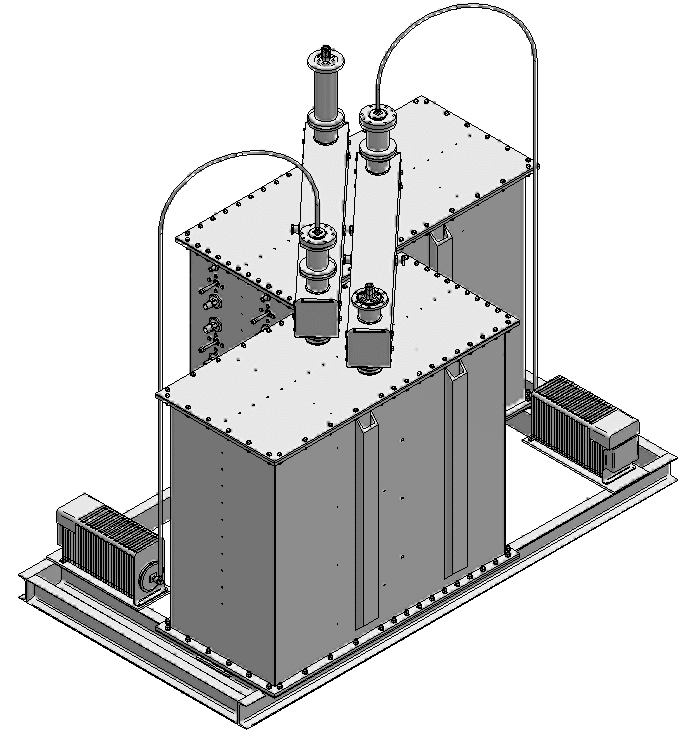

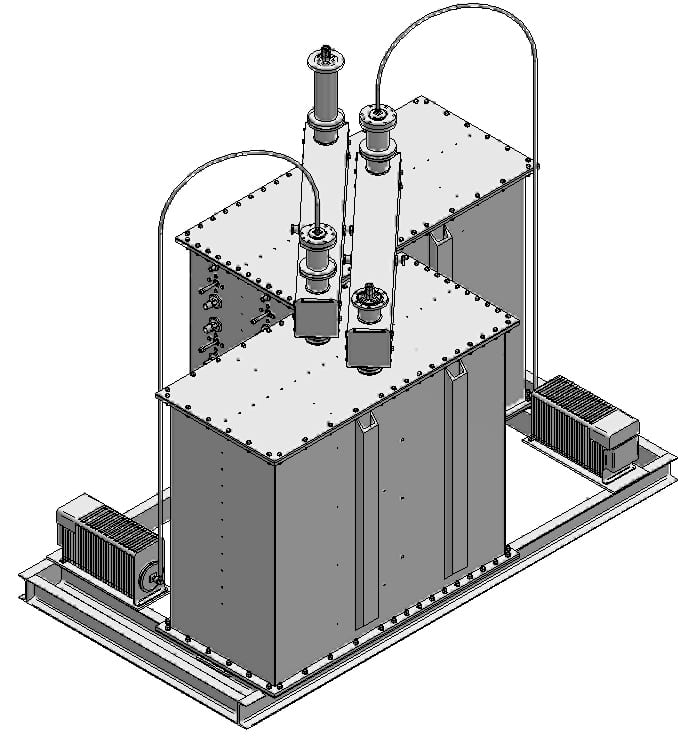

L-VHF DTV Channel Filter/Combiner Critical CIF 25kW
Type: Combiners, VHF
L-VHF DTV Channel Filter/Combiner Critical CIF 25kW0
specification tables:
| Model Number |
CLV2CC82 |
| Total Average Power₁ |
25 kW |
| Frequency |
54-88 MHz |
| Channel Spacing |
≥ 0 |
| Narrow Band Input |
|
| Average Power Handling₁ |
15 kW |
| Response Curve |
Critical (Full Mask) |
| Temperature Compensated |
Yes |
| Temperature Compensated |
Yes |
| Insertion Loss 6 MHz ATSC |
|
| F0 |
< 0.25 dB |
| F0 ±2.69 MHz |
< 0.65 dB |
| F0 ±3.00 MHz |
< 3.65 dB |
| F0 ±3.25 MHz |
> 23 dB |
| F0 ±9.00 MHz |
> 64 dB |
| Group Delay Variation₃ |
< 400 nS over passband |
| Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Wide Band Input |
|
| Average Power Handling₁,₃ |
5 kW |
| Insertion Loss |
≤ 0.1 dB |
| Group Delay Variation₂ |
<300 nS over passband |
| Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Output Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Isolation Between Inputs |
|
| NB to WB |
≥ 35 dB |
| WB to NB |
≥ 50 dB |
| VSWR |
< 1.06 |
| Material |
Al with Invar rods |
| Hybrids Type |
Coaxial |
| Number of Poles |
8 |
| Temperature Stability |
< 50 kHz shift over temperature range |
| Blowers & Shrouds |
No |
| Ambient Temperature |
68⁰F (20⁰C) to 95⁰F (35⁰C) |
| Storage Temperature |
32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity |
0-98% non condensing |
| Dimensions (L x W x H) |
85" x 48" x 68" (2.1m x 1.2m x 1.7m) |
| Weight |
1540 lbs (700 kg) |
| Max. Altitude₄ |
10,000 feet (3,050 kg) |
| Application |
ATV/DTV |
*All specifications are subject to change
