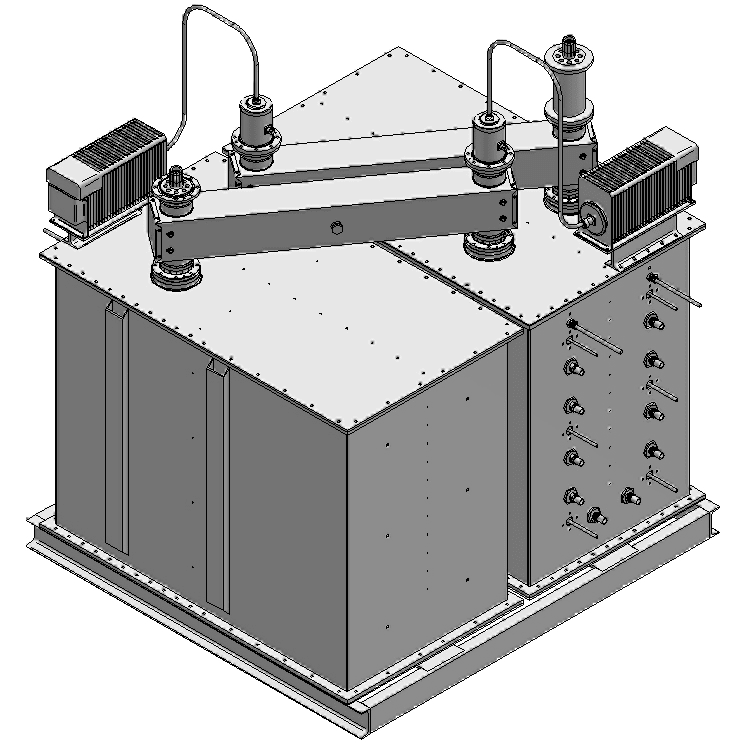

L-VHF DTV Channel Filter/Combiner Non Critical CIF 25kW
Type: Combiners, VHF
L-VHF DTV Channel Filter/Combiner Non Critical CIF 25kW0
specification tables:
| Model Number |
CLV2CN62 |
| Total Average Power₁ |
25 kW |
| Frequency |
54-88 MHz |
| Channel Spacing |
≥ 1 |
| Narrow Band Input |
|
| Average Power Handling₁ |
20 kW |
| Response Curve |
Non Critical (Full Mask) |
| Temperature Compensated |
Temperature Tuned |
| Insertion Loss 6 MHz ATSC |
|
| F0 |
< 0.2 dB |
| F0 ±2.69 MHz |
< 0.35 dB |
| F0 ±3.50 MHz |
> 0.05 dB |
| F0 ±4.50 MHz |
> 11.6 dB |
| F0 ±6.00 MHz |
> 30 dB |
| F0 ±9.00 MHz |
> 64 dB |
| Group Delay Variation₃ |
< 150 nS over passband |
| Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Wide Band Input |
|
| Average Power Handling₁,₃ |
5 kW |
| Insertion Loss |
≤ 0.1 dB |
| Group Delay Variation₂ |
< 10 nS over passband |
| Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Output Connector |
1-5/8" EIA/ 3-1/8" EIA |
| Isolation Between Inputs |
|
| NB to WB |
≥ 35 dB |
| WB to NB |
≥ 50 dB |
| VSWR |
< 1.06 |
| Material |
Al |
| Hybrids Type |
Coaxial |
| Number of Poles |
6 |
| Temperature Stability |
≈10 kHz/⁰F |
| Blowers & Shrouds |
No |
| Ambient Temperature |
68⁰F (20⁰C) to 95⁰F (35⁰C) |
| Storage Temperature |
32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity |
0-98% non condensing |
| Dimensions (L x W x H) |
64" x 60" x 70" (1.6m x 1.5m x 1.8m) |
| Weight |
1155 lbs (524 kg) |
| Max. Altitude₄ |
10,000 feet (3,050m) |
*All specifications are subject to change
