Standard 10kW, 20kW H-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic Response
Type: Filters, TV Bandpass
Standard 10kW, 20kW H-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic Response0
specification tables:
| Typical Specifications for 6 MHz TV Standard |
| Model Number CIF-HF9T10I |
| Frequency 174-230 MHz |
| Average Power Handling₁ ≤ 10 kW-20 kW |
| Type CIF |
| Response Curve Critical (Full Mask) |
| Temperature Compensated Yes |
| VSWR < 1.06 |
| Max. Altitude₂ 10,000 feet (3,050m) |
|
| Attenuation 6 MHz ATSC |
| F0 < 0.25 dB |
| F0 ±2.69 MHz < 0.65 dB |
| F0 ±3.00 MHz < 6.65 dB |
| F0 ± 3.25 MHz > 18 dB |
| F0 ±3.50 MHz N/A |
| F0 ±4.50 MHz N/A |
| F0 ±6.00 MHz N/A |
| F0 ±9.00 MHz > 34 dB |
|
| Number of Poles 9 |
| Group Delay Variation < 450 nS over passband |

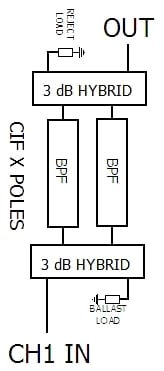

| Hybrids Coaxial |
| Connectors 1-5/8" EIA/ 3-1/8" EIA |
| Temperature Stability < 50 kHz shift over temperature range |
| Blowers & Shrouds No |
| Ambient Temperature 68⁰F (20⁰C) to 95⁰F (35⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing |
| Material Al with Invar rods |

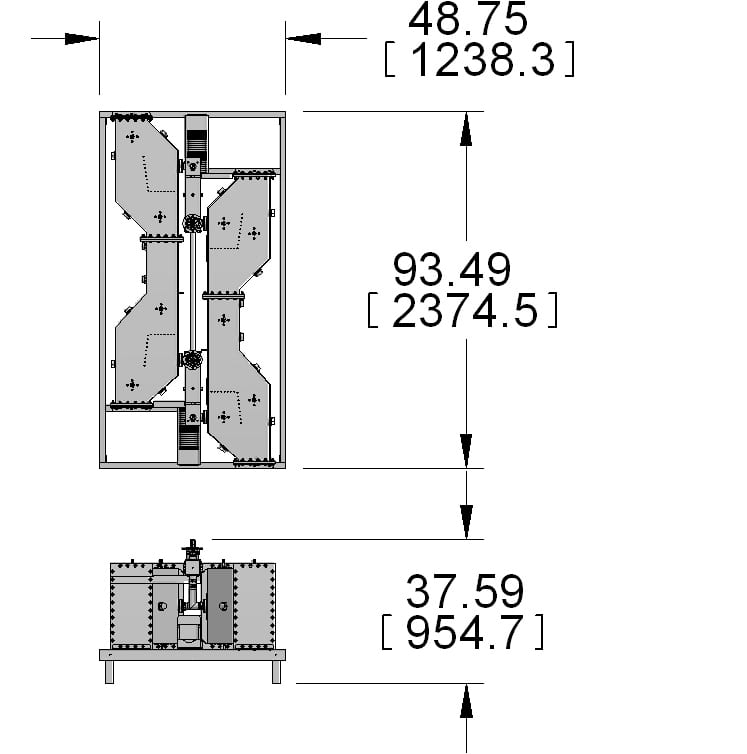

| Dimensions (L x W x H) 94" x 49" x 38" (2.4m x 0.7m x 1.0m) |
| Weight 1000 lbs (454 kg) |
| Applications ATV/DTV |
*All specifications are subject to change
