Standard 15 kW, 20 kW UHF Harmonic Filters
- Suitable for analog TV, digital TV and mobile media applications
- Indoor applications
- Low insertion loss figures
- High rejection of the harmonic products
specification tables:
| Typical Specifications for 6 MHz TV Standard |
| Model Number HUC3 HUC4 |
| Frequency₁ 470-806 MHz 470-806 MHz |
| Average Power Handling₂ ≤ 10 kW ≤ 20 kW |
| VSWR < 1.04 < 1.05 |
| Insertion Loss ≤ 0.1 dB ≤ 0.1 dB |
| Rejection |
| 2nd Order > 50 dB > 40 dB |
| 3rd Order > 50 dB > 40 dB |
| Impendance 50 ohms 50 ohms |
| Connectors 3-1/8" 4-1/16" |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing 0-98% non condensing |
| Material Cu-outer, Cu-capactive sections, Cu-outer |
| Silver-plated brass inductive sections Silver-plated inner |
| Dimensions (L) 36" (914.4 mm) 20.5" (520.7 mm) |
| Weight 11.4 lbs (5.2 kg) 16 lbs (7.3 kg) |
| Max. Altitude₃ 10,000 feet (3,050 m) 10,000 feet (3,050 m) |
| Application ATV/DTV/MM ATV/DTV/MM |

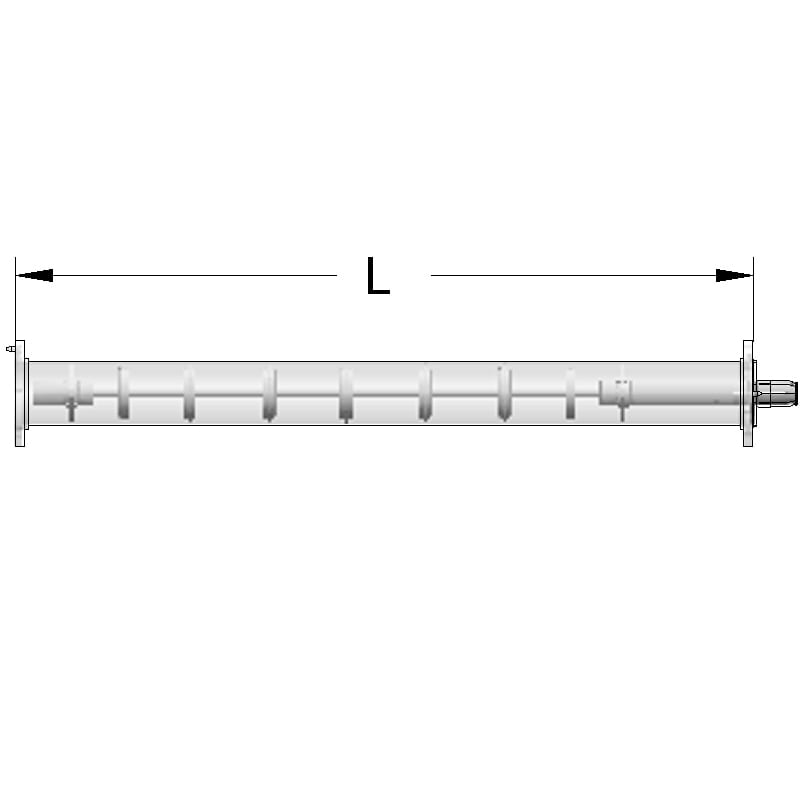

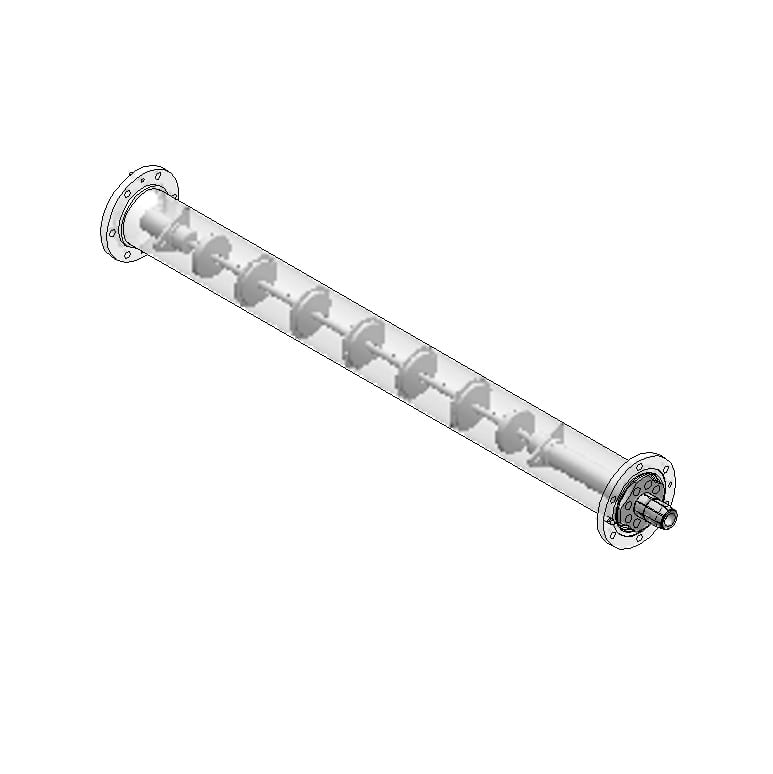

technical images:
*All specifications are subject to change
