Standard 5 kW, 15 kW VHF Harmonic Filters HVC
- Suitable for analog TV, digital TV, and mobile media applications
- Indoor applications
- Low insertion loss figures
- High rejection of the harmonic products
specification tables:
| Model Number HVC1 HVC3 |
| Frequency 174-230 MHz 174-230 MHz |
| Average Power Handling₁ ≤ 5kW ≤ 15kW |
| VSWR < 1.04 < 1.04 |
| Insertion Loss ≤ 0.1 dB ≤ 0.1 dB |
| Rejection |
| 2nd Order > 40 dB > 40 dB |
| 3rd Order > 40 dB > 40 dB |
| Impendance 50 Ohms 50 Ohms |
| Connectors 1 5-/8" 3 1/8" |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing 0-98% non condensing |
| Material Cu-outer Silver plated inner Cu-outer Silver plated inner |
| Dimensions (L) 41" 63.64" |
| Weight 7.2 lbs 17.6 lbs |
| Max. Altitude₂ 10,000 feet (3,050m) 10,000 feet (3,050m) |
| Application ATV/DTV/MM ATV/DTV/MM |

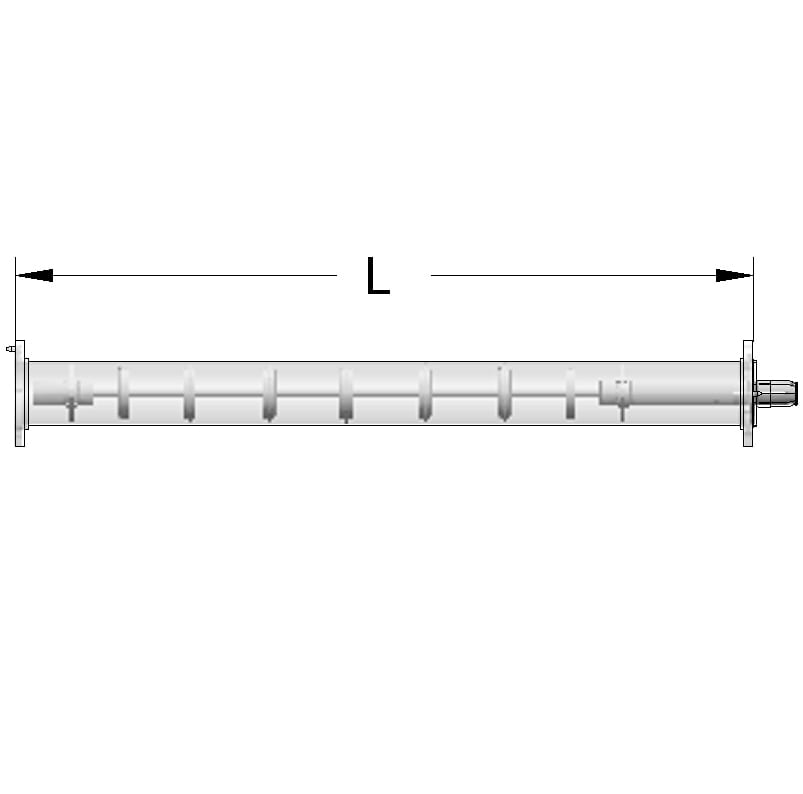

technical images:
*All specifications are subject to change
