Standard 7kW, 15kW L-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic
Standard 7kW, 15kW L-VHF DTV Bandpass Filter Critical, Pseudo-Elliptic0
specification tables:
| Typical Specifications for 6 MHz TV Standard |
| Model Number VF8E11F |
| Frequency 54-88 MHz |
| Average Power Handling₁ ≤ 7 kW-20 kW |
| Type Reflective |
| Response Curve Critical |
| Temperature Compensated Yes |
| VSWR < 1.1 |
| Max. Altitude₂ 10,000 feet (3,050m) |
|
| Attenuation 6 MHz ATSC |
| F0 < 0.25 dB |
| F0 ±2.69 MHz < 0.65 dB |
| F0 ±3.00 MHz < 3.65 dB |
| F0 ± 3.25 MHz > 23 dB |
| F0 ±3.50 MHz N/A |
| F0 ±4.50 MHz N/A |
| F0 ±6.00 MHz N/A |
| F0 ±9.00 MHz > 34 dB |
|
| Number of Poles 8 |
| Group Delay Variation < 400 nS over passband |
| Hybrids N/A |
| Connectors 1-5/8" EIA/ 3-1/8" EIA |
| Temperature Stability < 50 kHz shift over temperature change |
| Blowers & Shrouds No |
| Ambient Temperature 68⁰F (20⁰C) to 95⁰F (35⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing |
| Material Al with Invar rods |

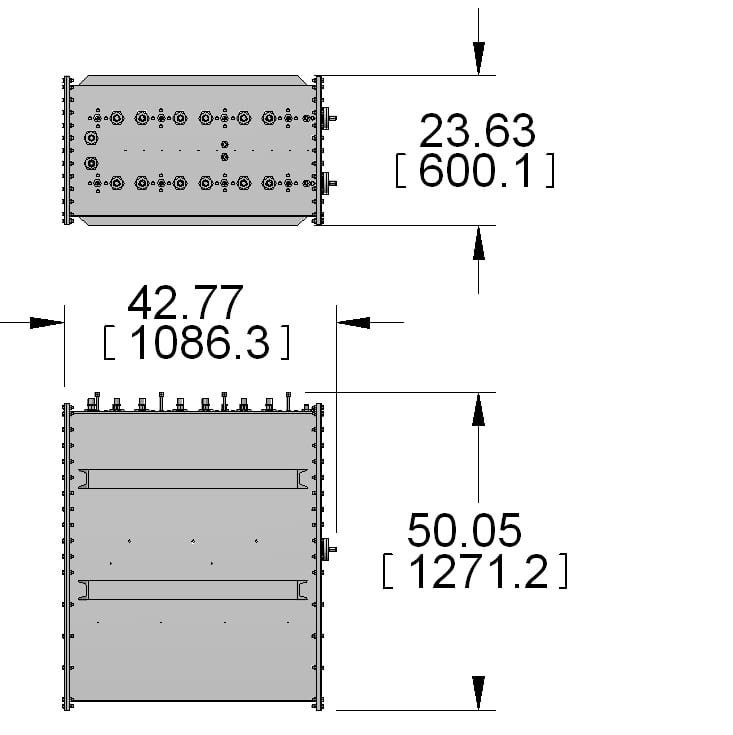

| Dimensions (L x W x H) 43" x 24" x 50" (1.0m x 0.6m x 1.3m) |
| Weight 670 lbs (304kg) |
| Applications ATV/DTV |

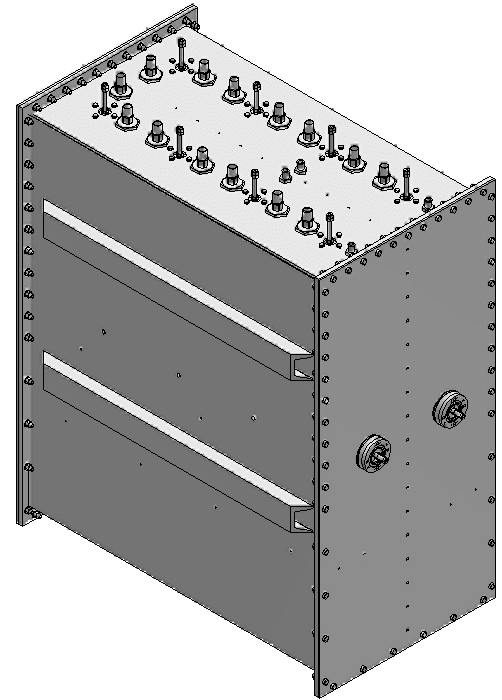

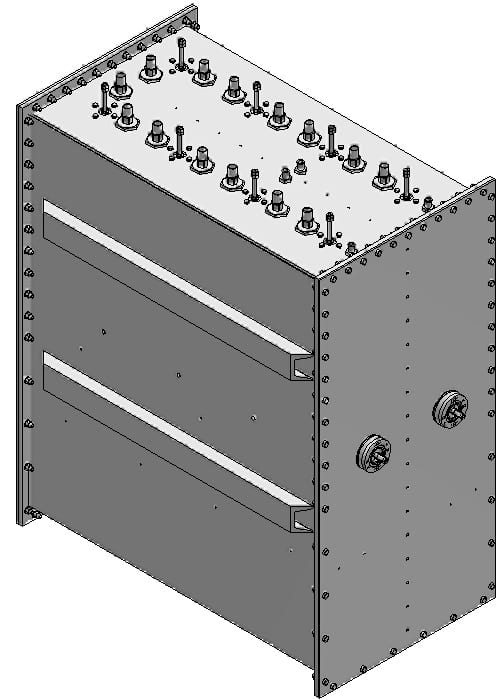

technical images:
*All specifications are subject to change
