Standard 7kW, 15kW L-VHF DTV Bandpass Filter Non Critical, Combine Filter
Type: Filters, TV Bandpass
Standard 7kW, 15kW L-VHF DTV Bandpass Filter Non Critical, Combine Filter0
specification tables:
Typical Specifications fpr 6 MHz TV Standard |
Model Number VF6E15F |
Frequency 54-88 MHz |
Average Power Handling₁ ≤ 7 kW-15 kW |
Type Reflective |
Response Curve Non Critical (Full Mask) |
Temperature Compensated Yes |
VSWR < 1.1 |
Max. Altitude₃ 10,000 feet (3,050m) |
|
Attenuation 6 MHz ATSC |
F0 < 0.2 dB |
F0 ±2.69 MHz < 0.35 dB |
F0 ±3.00 MHz N/A |
F0 ± 3.25 MHz N/A |
F0 ±3.50 MHz > 0.05 dB |
F0 ±4.50 MHz > 11.6 d |
F0 ±6.00 MHz > 30 dB |
F0 ±9.00 MHz > 64 dB |
|
Number of Poles 6 |
Group Delay Variation < 150 nS over passband |
Hybrids N/A |
Connectors 1-5/8" EIA/3-1/8" EIA |
Temperature Stability ≈10 kHz/⁰F |
Blowers & Shrouds No |
Ambient Temperature 68⁰F (20⁰C) to 95⁰F (35⁰C) |
Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) |
Ambient/ Storage Humidity 0-98% non condensing |
Material Al with Invar rods |

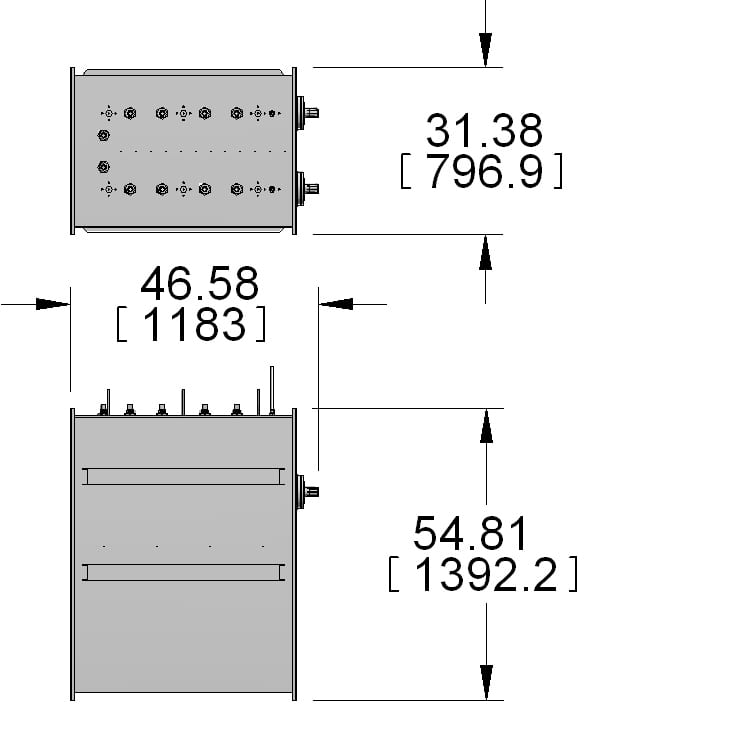

Dimensions (L x W x H) 47" x 31.4" x 55" (1.2m x 0.8m x 1.4m) |
Weight 503 lbs (228kg) |
Application ATV/DTV |

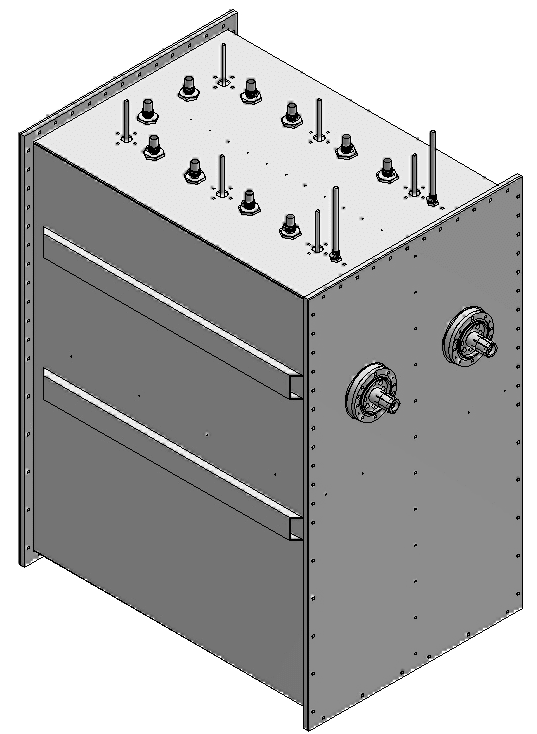

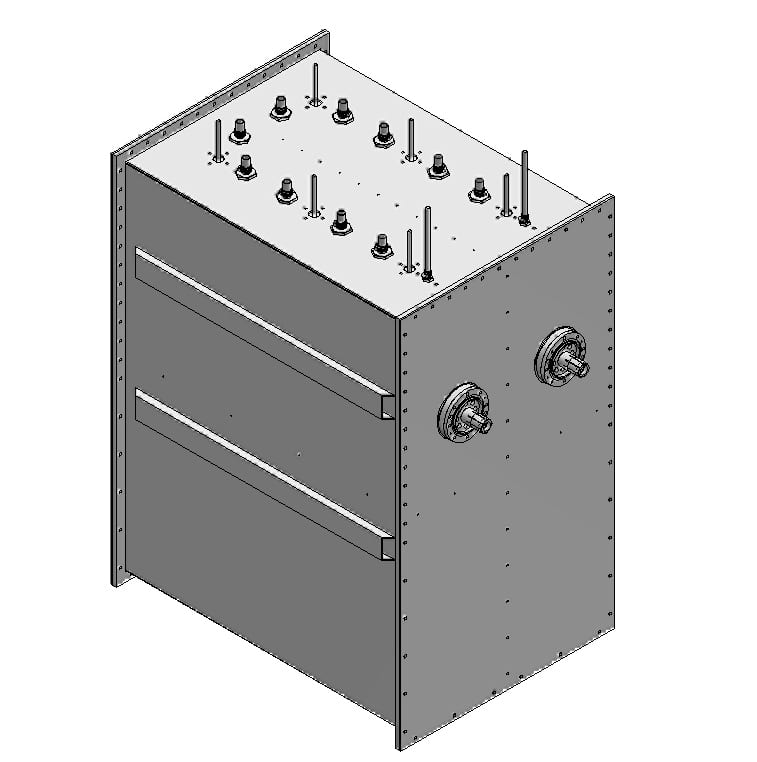

technical images:

*All specifications are subject to change
