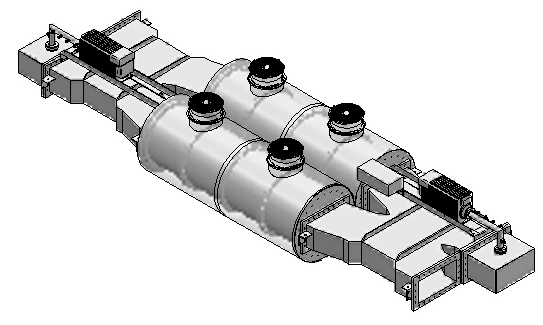

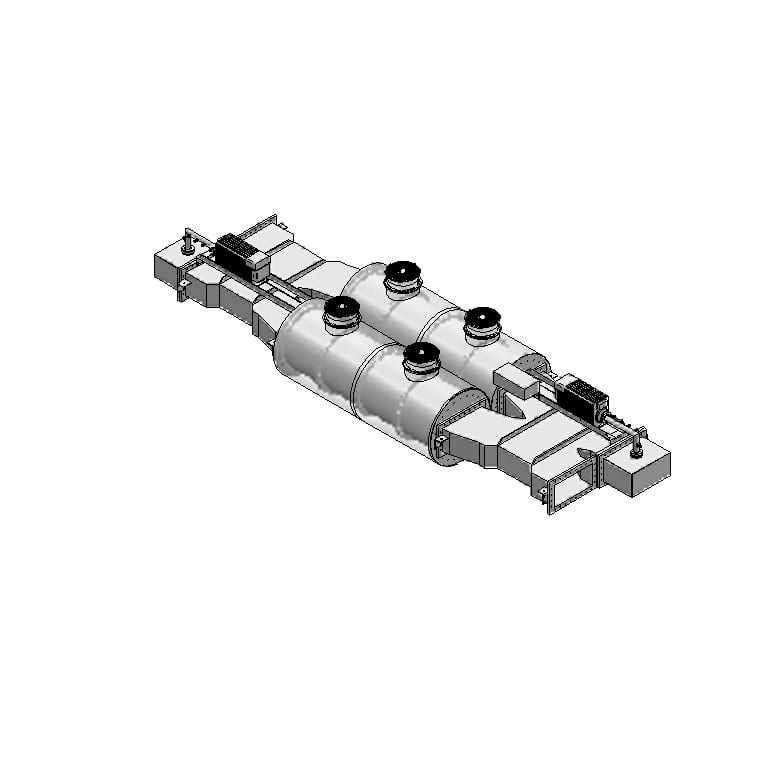

Standard 7kW to 75kW UHF DTV Bandpass Filter Non Critical, Elliptical
Type: Filters, TV Bandpass
Standard 7kW to 75kW UHF DTV Bandpass Filter Non Critical, Elliptical0
specification tables:
| Typical Specifications for 6 MHz TV Standard |
| Model Number CIF-UF6E18C CIF-UF6E11C CIF-UF6E11C |
| Frequency 470-494 MHz 494-680 MHz 650-860 MHz |
| Average Handling Power₁ 7-15-25-75 kW 7-15-25-75 kW 7-15-25-75 kW |
| Type CIF CIF CIF |
| Response Curve Non Critical (Full Mask) Non Critical (Full Mask) Non Critical (Full Mask) |
| Temperature Compensated Yes Yes Yes |
| VSWR < 1.06 < 1.06 < 1.06 |
| Max. Altitude₂ 10,000 feet (3,050m) 10,000 feet (3,050m) 10,000 feet (3,050m) |
|
| Attenuation 6 MHz ATSC |
| F0 < 0.3 dB < 0.3 dB < 0.3 dB |
| F0 ±2.69 MHz < 0.3 dB < 0.3 dB < 0.3 dB |
| F0 ±3.00 MHz N/A N/A N/A |
| F0 ± 3.25 MHz N/A N/A N/A |
| F0 ±3.50 MHz > 0.05 dB > 0.05 dB > 0.05 dB |
| F0 ±4.50 MHz > 11 dB > 11 dB > 11 dB |
| F0 ±6.00 MHz > 30 dB > 30 dB > 30 dB |
| F0 ±9.00 MHz > 64 db > 64 db > 64 db |
|
| Number of Poles 6 6 6 |
| Group Delay Variation < 150 nS over passband < 150 nS over passband < 150 nS over passband |
| Hybrids WR WR WR |
| Connectors 3-1/8" EIA / 3-1/8" EIA / 4-1/16" FLG / WR 1800 3-1/8" EIA / 3-1/8" EIA / 4-1/16" FLG / WR 1500 3-1/8" EIA / 3-1/8" EIA / 4-1/16" FLG / WR 1150 |
| Temperature Stability < 50 kHz shift over temperature range < 50 kHz shift over temperature range < 50 kHz shift over temperature range |
| Blowers & Shrouds Yes, P > 20 kW Yes, P > 20 kW Yes, P > 20 kW |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity 0-98% non condensing 0-98% non condensing 0-98% non condensing |
| Material Invar Invar Invar |

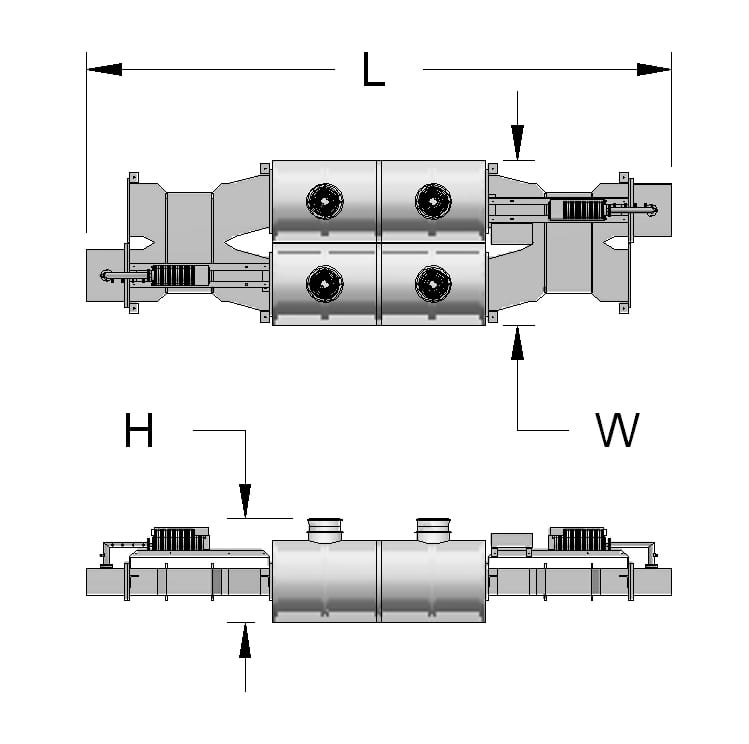

| Dimensions₃ (L x W x H) 202" x 56" x 31" (5.1m x 1.4m x 0.78m) 197" x 48" x 28" (5.0m x 1.2m x 0.7m) 163" x 42" x 26" (4.1m x 1.0m x 0.67m) |
| Weight₄ 1000 lbs (454 kg) 875 lbs (397 kg) 750 lbs (340 kg) |
| Application ATV/DTV ATV/DTV ATV/DTV |
*All specifications are subject to change
