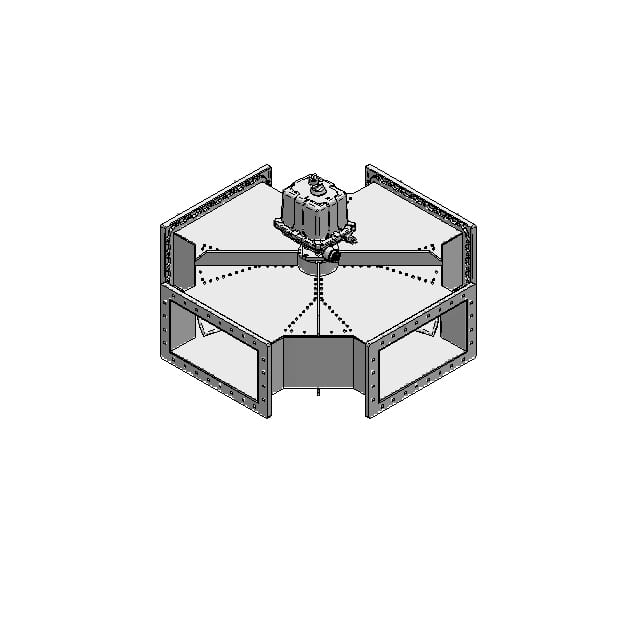

Waveguide WR 1500 4-Port Motorized Switch
Type: Switches, Waveguide
- High power UHF applications
- Low insertion loss
- Low VSWR
- Motor drive switching
- Indoor applications
- Emergency manual operation
- Mechanical switch position indicator
- High isolation
- H-plane switch
Notes:
1) For more than 5,000FT (1,524M), please consult the factory.
2) WR switches must not be exposed to condensing moisture environments.
3) 104°F (+40°C) ambient temperature, sea level, 0 PSIG, VSWR=1.0

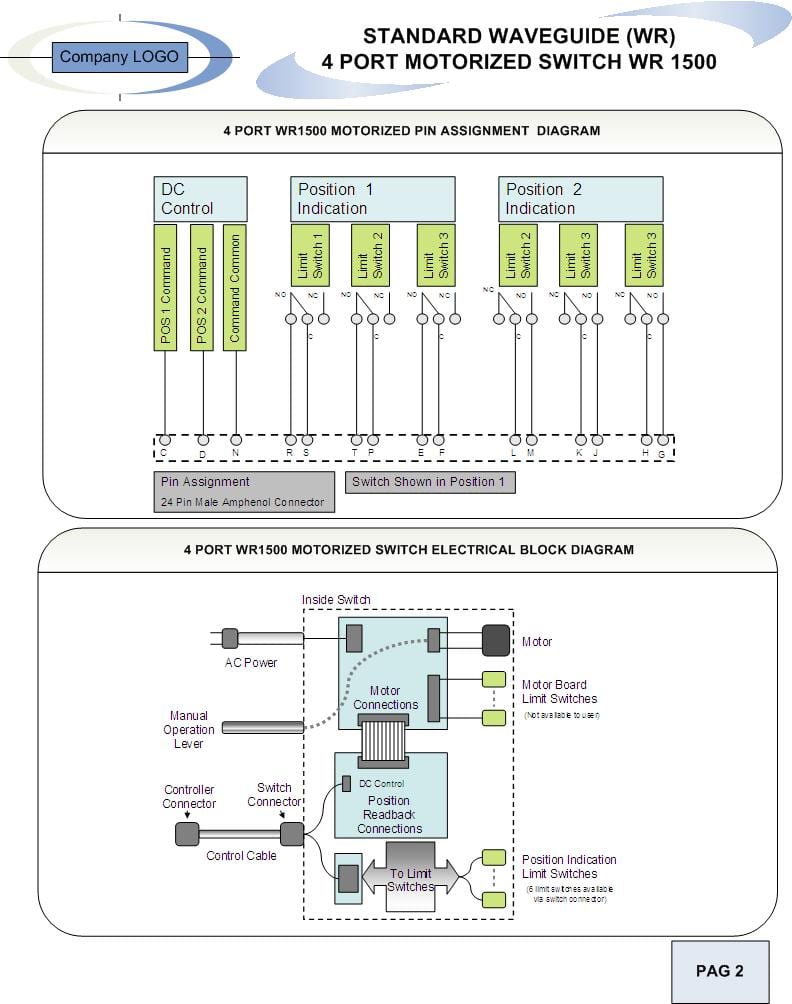

4) Limit switches are used for readout and position indication
specification tables:
| Model Number B50014-33 B50014-34 |
| Input/Output Connectors WR 1500 WR 1500 |
| Impendance 50 ohms 50 ohms |
| Peak Power at Sea Level 86 MW 86 MW |
| Frequency Range 494 ≤ F ≤ 680 MHz 494 ≤ F ≤ 680 MHz |
| Max. Altitude₁ 10,000 feet (3,050m) 10,000 feet (3,050m) |
| Ambient Temperature 59⁰F (15⁰C) to 104⁰F (40⁰C) 59⁰F (15⁰C) to 104⁰F (40⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Storage/ Ambient Humidity₂ 0-98% non condensing |
| Average Power₃ |
| 650 MHz ≤ 300 kW ≤ 300 kW |
|
| Insertion Loss ≤ 0.02 dB ≤ 0.02 dB |
| VSWR ≤ 1.03 ≤ 1.03 |
| Isolation > 70 dB > 70 dB |
| Switching Time 6 sec. 6 sec. |
| Electrical Data |
| Motor Operating Voltage 115 V AC 50/60 Hz 230 V AC 50/60 Hz |
| Motor Operating Current 1.25 Amps-start 0.93 Amps-start |
| 0.6 Amps-run 0.5 Amps-run |
| Control Voltage 12/24 V DC 115/230 V AC 12/24 V DC 115/230 V AC |
| Limit Switch Rating₄ |
| Voltage 277 V AC 28 V DC 120 V AC 28 V DC |
| Current 113 HP / 10 Amps 113 HP / 10 Amps |
| Weight 197 lbs (89 kg) 197 lbs (89 kg) |
*All specifications are subject to change
