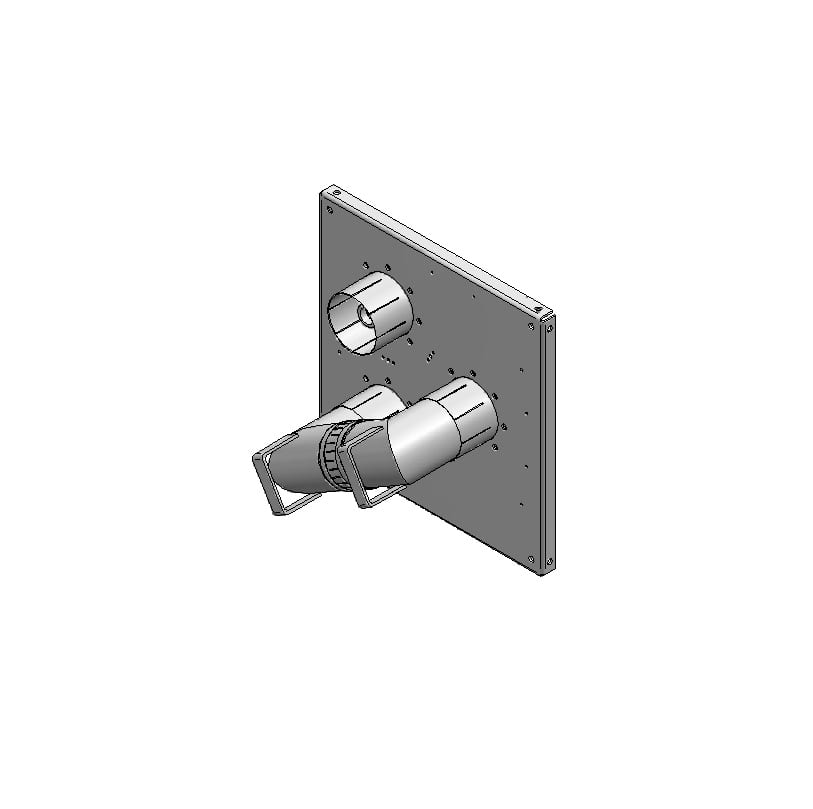

Coaxial 3-Port Patch Panel
Type: 3 Port, Patch Panels
- Low insertion loss
- Low VSWR
- Indoor applications
- Manual switching with U-link
- DPDT interlocks for customer’s RF interlocking
1) For more than 5,000 feet (1,524 m), please contact the factory.
2) Patch panels must not be exposed to condensing moisture environments.
3) 104°F (+40°C) ambient temperature, 145°F (63°C) outer temperature,
248°F (120°C) inner temperature sea level, 0 PSIG, VSWR=1.0
specification tables:
| Model Number DC 285-431 DC 385-431 DC 485-431 |
| Input/Output Connectors 1-5/8" EIA 3-1/8" EIA 4-1/16" FLG |
| Impendance 50 ohms 50 ohms 50 ohms |
| Frequency Range 0-860 MHz 0-860 MHz 0-860 MHz |
| Peak Voltage at Sea Level 4 kV 7.8 kV 11 kV |
| Max. Altitude₁ 10,000 feet (3,050m) 10,000 feet (3,050m) 10,000 feet (3,050m) |
| Ambient Temperature 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature 32⁰F (0⁰C) to 122⁰ F (50⁰C) 32⁰F (0⁰C) to 122⁰F (50⁰C) 32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage/ Ambient Humidity₂ 0-98% non condensing 0-98% non condensing 0-98% noncondensing |
| Average Power₃ |
| 108 MHz ≤ 15 kW ≤ 50 kW ≤ 80 kW |
| 230 MHz ≤ 10 kW ≤ 35 kW ≤ 57.8 kW |
| 860 MHz ≤ 5.4 kW ≤ 18 kW ≤ 28.7 kW |
| Insertion Loss ≤ 0.1 dB ≤ 0.1 dB ≤ 0.1 dB |
| VSWR ≤ 1.05 ≤ 1.05 ≤ 1.05 |
| U-link 1 of 1-5/8" 1 of 3-1/8" 1 of 4-1/16" |
| Number of Interlock Contacts 3 3 3 |
| Loading of Internal Contacts |
| Operating Voltage ≤ 125 V AC ≤ 125 V AC |
| Operating Current ≤ 8 A ≤ 8 A |
| Weight (with U-link) 40 lbs (18.2 kg) 65 lbs (29.5 kg) 105 lbs (47.7 kg) |
*All specifications are subject to change
