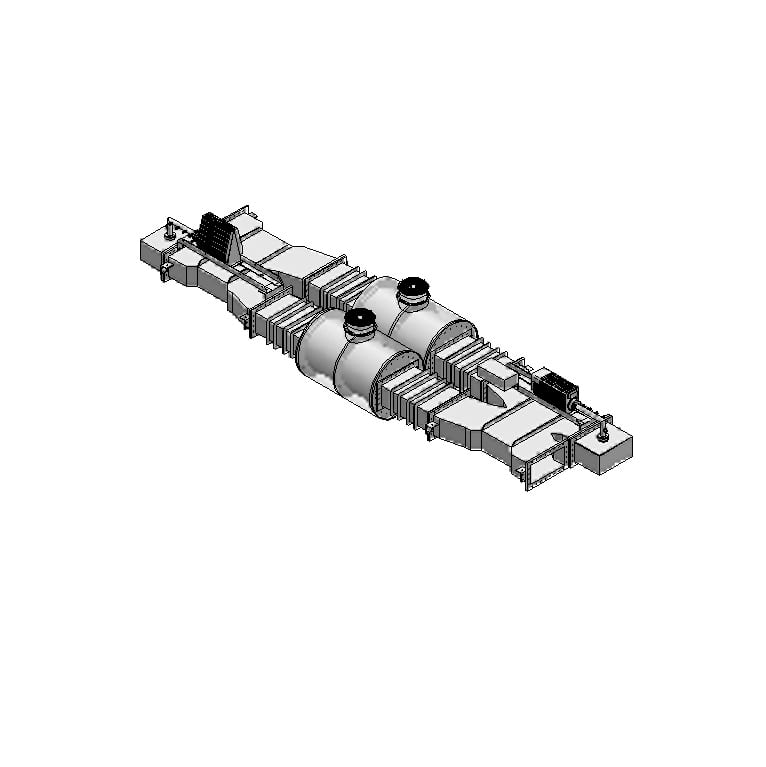

UHF DTV Channel Filter/Combiner Non Critical CIF, Elliptical Response 15kW to 75kW
Type: Combiners, UHF CIF
UHF DTV Channel Filter/Combiner Non Critical CIF, Elliptical Response 15kW to 75kW0

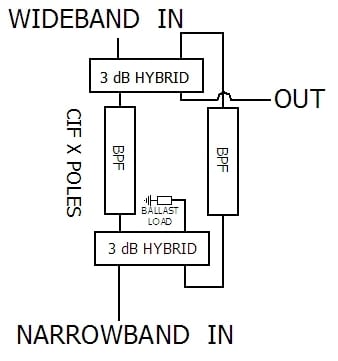

specification tables:
| Typical Specifications for 6 MHz Standard |
|
|
|
| Model Number |
CU182CN63 |
CU152CN63 |
CU112CN63 |
| Total Average Power₁ |
15 kW-30kw-75kW |
15 kW-30kw-75kW |
15 kW-30kw-75kW |
| Frequency |
470-494 MHz |
494-680 MHz |
494-860 MHz |
| Channel Spacing |
≥ 1 |
≥ 1 |
≥ 1 |
|
|
|
|
| Narrow Band Input |
|
|
|
| Average Power Handling₁ |
10 kw-20 kW-55 kW |
10 kw-20 kW-55 kW |
10 kw-20 kW-55 kW |
| Response Curve |
Non Critical |
Non Critical |
Non Critical |
| Temperature Compensated |
Yes |
Yes |
Yes |
|
|
|
|
| Insertion Loss 6 MHz ATSC |
|
|
|
| F0 |
< 0.3 dB |
< 0.3 dB |
< 0.3 dB |
| F0 ±2.69 MHz |
< 0.3 dB |
< 0.3 dB |
< 0.3 dB |
| F0 ±3.50 MHz |
> 0.05 dB |
> 0.05 dB |
> 0.05 dB |
| F0 ±4.50 MHz |
> 10.3 dB |
> 10.3 dB |
> 10.3 dB |
| F0 ±6.00 MHz |
> 30 dB |
> 30 dB |
> 30 dB |
| F0 ±9.00 MHz |
> 64 dB |
> 64 dB |
> 64 dB |
| Group Delay Variation₃ |
< 150 nS over passband |
< 150 nS over passband |
< 150 nS over passband |
| Connector |
3-1/8" EIA/ 4-1/16" FLG/ WR 1800 |
3-1/8" EIA/ 4-1/16" FLG/ WR 1500 |
3-1/8" EIA/ 4-1/16" FLG/ WR 1150 |
|
|
|
|
| Wide Band Input |
|
|
|
| Average Power Handling₁,₃ |
5 kW-10 kW, 20 kW |
5 kW-10 kW, 20 kW |
5 kW-10 kW, 20 kW |
| Insertion Loss |
≤ 0.1 dB |
≤ 0.1 dB |
≤ 0.1 dB |
| Group Delay Variation₂ |
< 10 nS over passband |
< 10 nS over passband |
< 10 nS over passband |
| Connector |
3-1/8" EIA/ WR 1800 |
3-1/8" EIA/ WR 1500 |
3-1/8" EIA/ WR 1150 |
|
|
|
|
| Output Connector |
3-1/8" EIA/ 4-1/16" FLG/ WR 1800 |
3-1/8" EIA/ 4-1/16" FLG/ WR 1500 |
3-1/8" EIA/ 4-1/16" FLG/ WR 1150 |
|
|
|
|
| Isolation Between Inputs |
|
|
|
| NB to WB |
≥ 35 dB |
≥ 35 dB |
≥ 35 dB |
| WB to NB |
≥ 50 dB |
≥ 50 dB |
≥ 50 dB |
| VSWR |
< 1.06 |
< 1.06 |
< 1.06 |
| Material |
Invar |
Invar |
Invar |
| Hybrids Type |
WR |
WR |
WR |
| Number of Poles |
6 |
6 |
6 |
| Temperature Stability |
< 50 kHz shift over temperature range |
< 50 kHz shift over temperature range |
< 50 kHz shift over temperature range |
| Blowers & Shrouds |
Yes, P > 20 kW |
Yes, P > 20 kW |
Yes, P > 20 kW |
| Ambient Temperature |
32⁰F (0⁰C) to 113⁰F (45⁰C) |
32⁰F (0⁰C) to 113⁰F (45⁰C) |
32⁰F (0⁰C) to 113⁰F (45⁰C) |
| Storage Temperature |
32⁰F (0⁰C) to 122⁰F (50⁰C) |
32⁰F (0⁰C) to 122⁰F (50⁰C) |
32⁰F (0⁰C) to 122⁰F (50⁰C) |
| Ambient/ Storage Humidity |
0-98% non condensing |
0-98% non condensing |
0-98% non condensing |

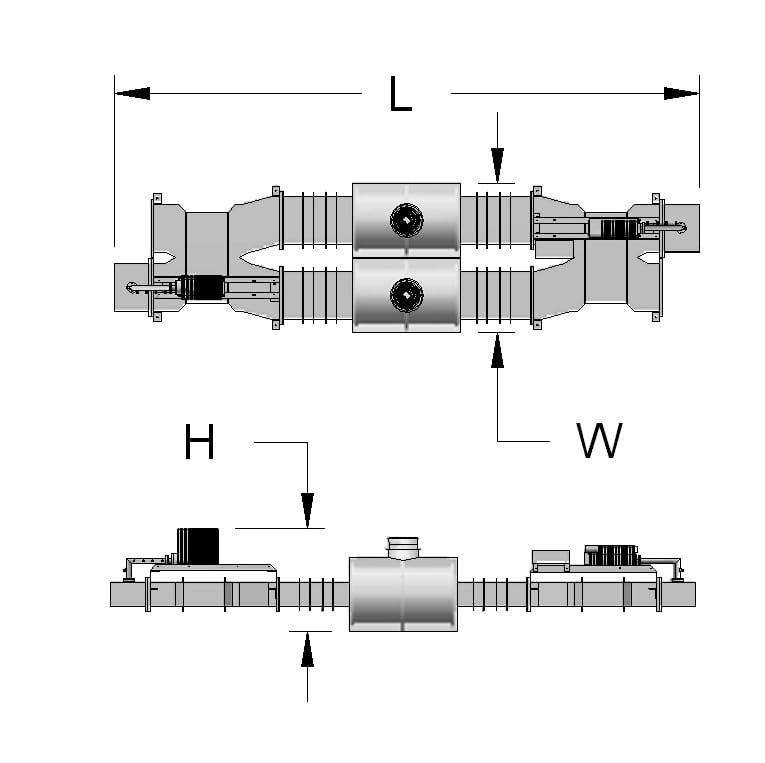

| Dimensions (L x W x H) |
202" x 56" x 31" (5.1m x 1.4m x 0.78m) |
197" x 48" x 28" (5.0m x 1.2m x 0.7m) |
163" x 42" x 26" (4.1m x 1.0m x 0.67m) |
| Weight |
1000 lbs (454 kg) |
875 lbs (397 kg) |
750 lbs (340 kg) |
| Max. Altitude₄ |
10,000 feet (3,050m) |
10,000 feet (3,050m) |
10,000 feet (3,050m) |
| Application |
ATV/DTV |
ATV/DTV |
ATV/DTV |
*All specifications are subject to change
